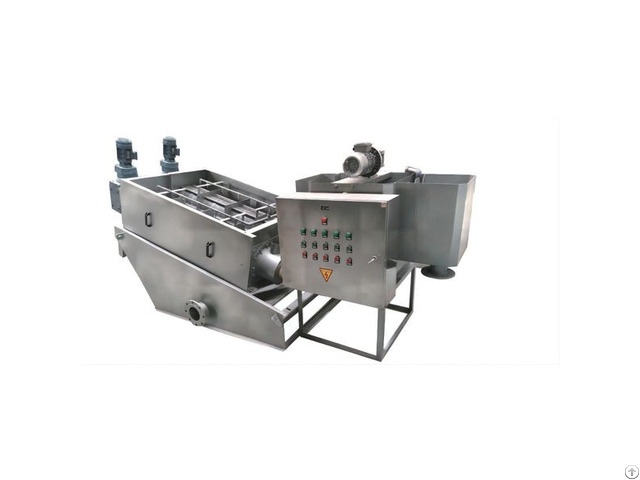

Ryctlscrew Press - China

Introduction

Main features：

1 - Concentration: when the spiral driving shaft rotates, the multiple fixed live laminates located at the periphery of the driving shaft move relative to each other.

Under the action of gravity, water is filtered out from the relatively moving lamination clearance to achieve rapid concentration.

2 - Dehydration: the concentrated sludge moves forward with the rotation of the screw axis; Along the direction of the mud cake outlet, the screw pitch of the spiral axis decreases gradually, the gap between rings decreases gradually, and the volume of the spiral cavity shrinks continuously.

Under the action of the back pressure plate at the outlet, the internal pressure gradually increases, and under the continuous operation of the spiral drive axis successively, the water in the sludge is squeezed out, and the solid content of the filter cake increases continuously, finally achieving the continuous dehydration of the sludge.

3 - Self-cleaning: the rotating screw shaft drives the swimming ring to rotate constantly.

The equipment realizes the continuous self-cleaning process by moving between the fixed ring and the swimming ring
