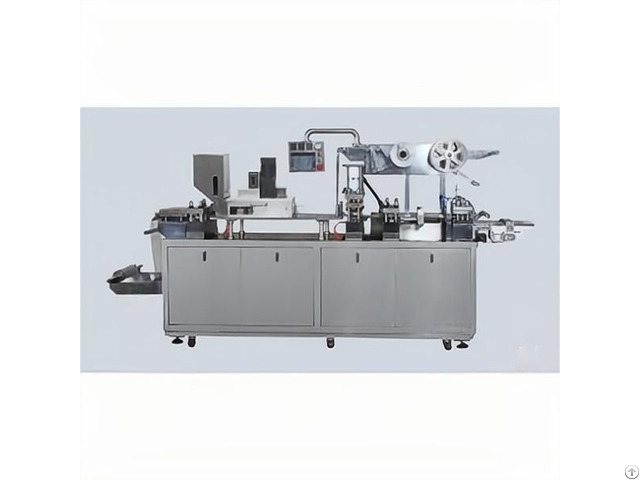

Rydpp 250f Blister Packaging Machine - China

it adopts the newest type high- power transmission mechanism to arrange the chain and drive the main driving shaft.

the errors and noises of other gear wheel transmission can be avoided.

imported controlling system is adopted; also it can be equipped with detecting and rejection function device (omron sensor) for number of medicines according to the user’ s requirement.

it adopts imported frequency inverter.

it adopts photoelectrical controlling system to make pvc, ptp, aluminum/aluminum material to be automatically fed and waste side to be cut automatically to guarantee the synchronous stability of overlength distance and multi stations.

it can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.

model rydpb-250e

punches frequency 6-50times/min

production capacity 35000-230000pcs/hour

max.

forming area and depth 240x170x26mm

(standard plate size: 240x150x14mm)

stroke travel range 40-160mm(can be designed for length over to 180mm as per user' s required)

standard plate size 80x57mm

air pressure (designed as per user’ s requirement)

0.4-0.6mpa

air compressed required ≥0.3m3/min

total power supply 380v/220v 50hz 6.2kw

main motor 1.5kw

pvc hard film 0.15-0.5x250 mm

ptp aluminum film 0.02-0.035 x 250mm

dialysis paper 50-100gx 250mm
