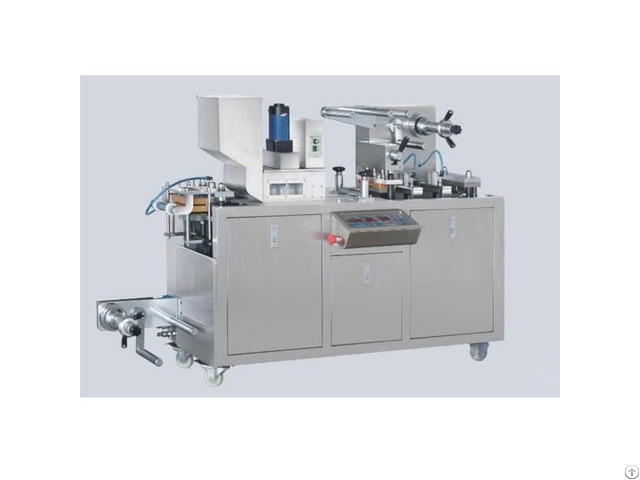

Rydpp Liquid Blister Packaging Machine - China

It adopts the newest type high -power transmission mechanism to arrange the chain and drive the main driving shaft .

The errors and noises of other gear wheel transmission can be avoided.

Imported controlling system is adopted ; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.

It adopts photoelectrical controlling system to make PVC PTP .

Aluminum / Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over-length distance and multi stations.

It can be optional equipped with photocell correction device imported stepper motor traction and image-character register to optimize packing grade.

The machine is suitable for industries of foodstuff, medicine medical instruments .

hardware electronics and etc for packing.

Model RYDPP80

Punch frequency 10-33 times/min

Production capacity 2400 plates/hour

Max.

Forming area & Depth 105x70 ( standard depth = 15mm) Max.

Depth 25mm (As adjusted )

Standard Stroke range 30-80mm

(can be designed as per user* s required)

Standard plate size 80x70mm

(can be designed as per user' s required)

Air pressure 0.4-0.6Mpa

Compressed air required Air compressor 0.3m3/min

Total power supply 380V/220V 50Hz 2.8Kw

Main motor 0.75Kw

PVC hard Film 0.15-0.5*110 (mm)

PTP Aluminum film 0.02-0.035*110 (mm)

Dialysis Paper 50-100g*110(mm)

Mould cooling Tap water or Recycling water

Overall Dimension 1840x590x1100 (mm)(LxWxH)

Weight Net weight 450kg Gross weight: 520kg
