Rygr Benchtop Glass Reactors Ce - China

Glass Drain Port with PTFE Valve

No dead volume design.

Open/Close valve to start/stop draining.

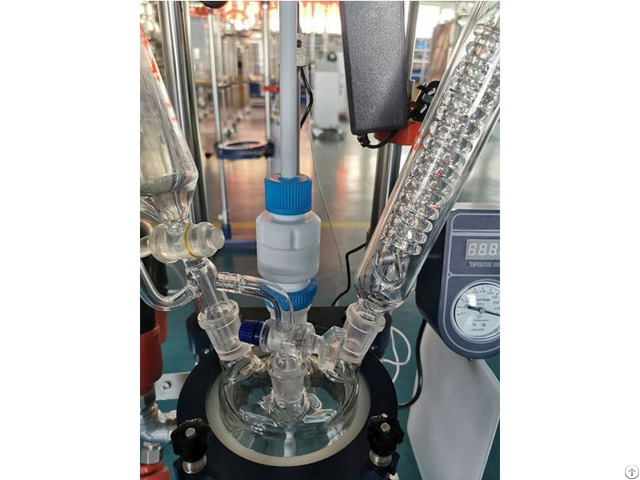

RYGR-3 Double-Wall Glass Reactor

Model RYGR-3

Electrical Requirements 1～, 220V/50Hz

Glass Parts Glass Vessel Capacity 3L Cooling/Heating Jacket Capacity 0.9L Glass Type Food grade borosilicate 3.3 Temperature Range -80～200℃ Vessel endurable pressure -0.1～0.0 Mpa Jacket endurable pressure ≤+0.03 Mpa Cooling Surface of Condenser 250cm2 Capacity of Constant Pressure Funnel 200ml Endurable Temperature Difference (∆T) ≤80℃ Vessel Cover Domed with 5 openings

5 Openings Opening for Stirring Shaft 24# standard Ground Mouth Opening for Temperature Sensor 24# standard Ground Mouth Opening to Connect Condenser 24# standard Ground Joint Opening to Feed Liquid Material 19# standard Ground Mouth Opening for Constant Pressure Funnel 24# standard Ground Joint

Stirring Parts Motor Power 90 W Controller Digital controller with variable frequency Rotation Speed 50～500 rpm Stirring Shaft PTFE covered stainless steel Stirrer 4-blade propeller Max.

Torque 70 N-cm Max.

Viscosity Mpas 100000 Safety Over-heat, Over-load protection
