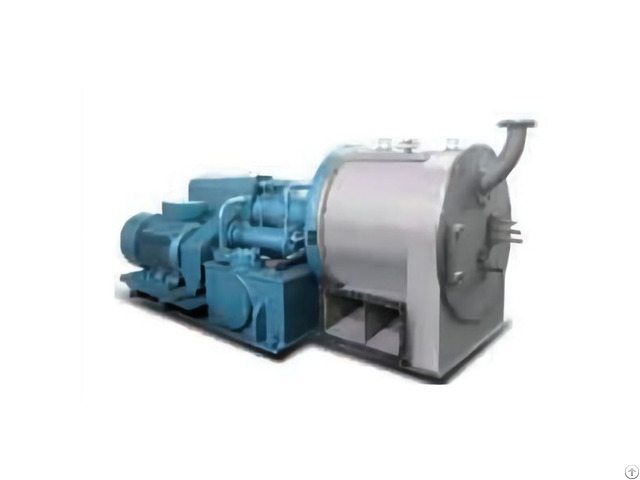

Ryhr Pistonspushing Centrifuge - China

Working principle

RYHR pistons pushing centrifuge consist of oil-supplying system product-pushing structure, bearing seat, main shaft, pushing rod inner drum.

outer drum, sieving net, product gathering groove, feeding pipe, washing pipe, housing and other parts.

When the drum runs on a full speed driven by the main motor and transmission belt, the suspension will be led to the product distributing plate through feeding pipeline continuously.

Then the suspension will be distributed evenly on the filter net on the inner first-grade drum.

Most of the liquid phase Will be thrown out through the filter net and the filter holes on the drum wall and then drained outside through liquid outlet.

The solid will be intercepted on the first-grade drum and form a cake ring.

While the drums of the two grades are revolving together at a same speed, the drum of the first grade will move reciprocately continuously in axial by the pushing of the pistons, then the pushing plate will be able to push out the filter cake on the drum of the first grade.

In the next step.

the filter cake will be pushed into the drum of the second grade to further separate and form a new filter cake.

Then, the outer edge of the first-grade drum will push the new filter cake out of the second grade drum continuously.
