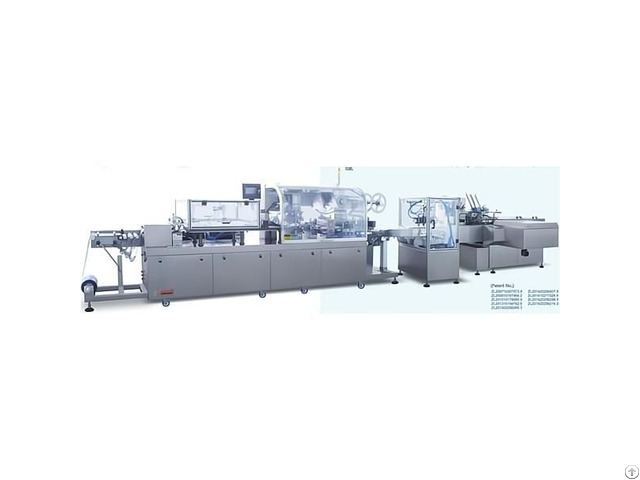

Rypbl 260d Medicine Packing Automatic Production Line - China

USE：

This machine is designed and improved by our engineers, It is specialized for the combined blister packing of both one ampoule and one vial according to the requirement of customers.

It is composed of blister forming, ampoule feeding, vial feeding, hot sealing, cutting and cartooning is controlled by PLC, has advanced self-examining function, can identify broken blister, shortage of bottle, shortage of manual and empty box examining memory.

It can waste at 100% level, can be used for the stuffing of vial and manual boxing automatically.

Max.

Production Capacity

(Related to the shape and size of material) ≤20-60 Times/Min.

(AI/PVC Packing Machine) ≤180 Box/Min.

(Cartoner)

Max.

Forming Area and Depth (AL/PVC): 250X110X22mm AL/AL): 250X110X18mm

Carton Size Scope(L x W x H) (80-150) X (40-80) X(15-40)mm

Leaflet Size Scope(L x W) (130-240)X(100-180)mm

Carton Material 250-350g/m2

Specifications Material 60-80g/m2

Power Supply/Total Power 380V 50HZ 14.5KW

Compress Air Pressure/Total Air Consumption 0.6-0.8Mpa ≥0.8 m3/min

Whole Machine Weight 4500Kg Material Filling Rate ≥99%

Encasing Rate of Finished Products ≥99%
