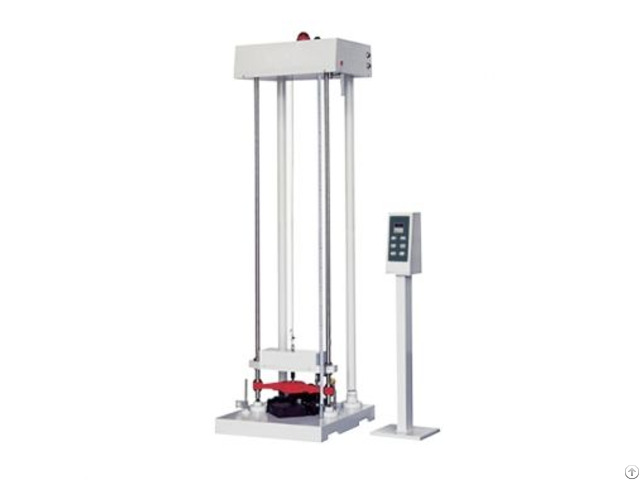

Safety Shoe Impact Testing Machine - China

according to the criteria

bs-953.1870 en-344 - ansi-z41 csa-z195 iso k88782 en iso 20344 - ansi-z41 bs en-344 csa-zi95 ld50-1994 product features

drop hammer mechanism capable of holding and releasing a drop hammer from a specified height.

capability to use different standard drop hammer weights, such as 20$\pm$0.2kg (for en standards) and 22.7kg (for bs, ansi standards).

adjustable falling height for the drop hammer, with a range typically from 0 up to at least 1100mm (for en standards).

system for achieving specific impact energies, such as 200 joules (for en standards) and 100$\pm$2 joules (for bs, ansi standards), which are determined by the drop hammer weight and falling height.

standardized impact edge on the drop hammer, with specifications varying by standard (e.g., 3$\pm$0.1mm radius for en, $\phi$25.4mm for ansi).

anvil or baseplate on which the shoe is placed for the impact test.

fixture or system for securely mounting the safety shoe in the correct position for the impact test.

mechanism for measuring the residual height inside the toecap after the impact.

electric motor (dc 1/4hp) for raising the drop hammer to the required height.

robust and heavy construction (approximately 227kg) to ensure stability during impact.

technical parameters

weight of drop hammer: (en) 20±0.2kg, (bs, ansi)22.7kg falling height: (en) 0——1100mm impact capacity: (en) 200 joules, (bs, ansi) 100±2 joules impact edge: (en)3±0.1mm(r), (ansi)ø25.4mm horsepower: dc 1/4hp volume: 58.5×69.5×181.5cm weight: 227kg power supply: 1∮, ac220v
