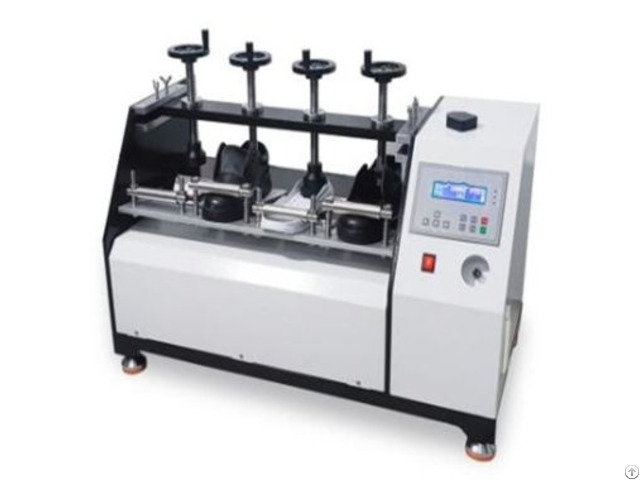

Shoe Flexing Tester - China

product introduction

finished shoes bending testing machine finished shoes bending testing machine test shoes, casual shoes, work shoes and other soles, after a long time, fixed frequency, fixed angle of continuous bending, evaluate its folding performance or check its cracking degree.

reference standard

hg/t 2871-2008b method gb/t 20991-2007 qb/t 2881-2007 product advantages

versatile testing capability: can test both complete finished shoes and separate sole materials on the same machine.

measures key durability: evaluates resistance to repeated flexing and the potential for crack initiation or growth in both shoes and soles.

standard compliant: designed to meet relevant standards, including hg/t 2871 (method b), for footwear and sole flexing tests.

controllable test parameters: allows precise adjustment of bending angle and flexing speed according to test requirements and standards.

quantitative result: provides the number of flexing cycles performed, used to assess performance at a set number of cycles or determine cycles to failure.

multiple testing stations: enables simultaneous testing of multiple specimens (either finished shoes or sole samples), increasing testing efficiency.

wide speed range: offers a broad adjustable speed range for various testing needs.

product features

reciprocating bending mechanism designed to apply repeated flexing to the test specimens.

capability to test both finished shoes and sole materials, implying interchangeable or adaptable clamping fixtures.

multiple testing stations capable of testing 4 individual specimens simultaneously (either 4 sole samples or 2 pairs of shoes).

adjustable bending angle with specific selectable angles (30°, 45°, 60°, 90°).

adjustable test speed (0-150 ± 5 cycles per minute) for controlling the rate of bending.

lcd digital counter with a large test range (0-9.999.999 times) to track the number of flexing cycles.

robust construction suitable for repetitive fatigue testing.

random configuration

1 - one machine 2 - add 4 palms 3 - one wrench 4 - one power cable 5 - one copy of instructions 6 - one delivery note technical parameters

1 - the same test sample number: 2 pairs of shoes (4)/ sole 4 2 - bending angle: 30°, 45°, 60°, 90°(adjustable) 3 - counter: lcd liquid crystal display 4 - test range: 0-9999999 times 5 - test speed: 0-150±5cpm adjustable 6 - power supply: av220v, 3a
