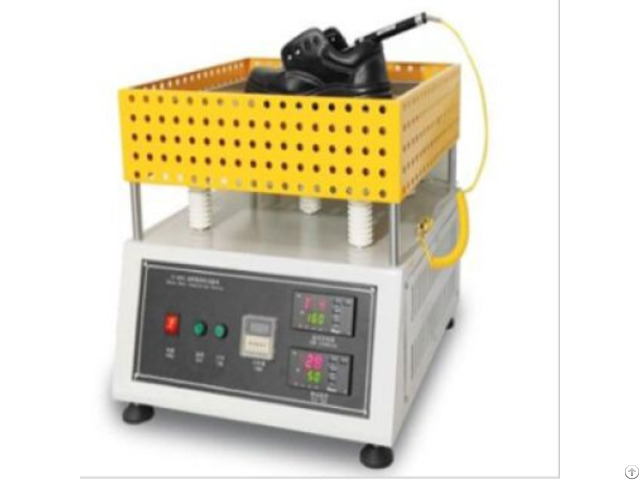

Shoe Heat Insulation Testing Machine Sand Bath - China

Standard

GB/T 20991: Determines thermal insulation of safety shoe soles under simulated hot surface exposure.

EN ISO 20344: European standard for personal protective equipment (PPE) footwear thermal resistance testing.

Product Features

Sand Bath System: Heated Plate: 300mm × 300mm aluminum plate with 50mm silica sand layer.

Uniform Heating: Embedded cartridge heaters with thermal diffusers.

Temperature Control: PID controller with auto-tuning for rapid setpoint convergence.

Over-temperature alarm with 5°C differential protection.

Sensing Suite: 2 × K-type thermocouples for sand bath and shoe interior.

1.5m cable length for flexible probe placement.

Safety Systems: Category II electrical safety certification (EN 60529).

Residual current device (RCD) for operator protection.

Software Bundle: ThermShoe Pro™: Auto-calculates thermal gradient (°C/min) and insulation index.

Cloud PPE: Remote monitoring for global R&D teams.

Accessories & Options

Standard Kit: 100 × 50g calibration steel balls (316L stainless).

2 × K-type thermocouples with color-coded connectors.

Software Add-Ons: Batch Processor: Queue 24/7 unattended testing.

API Integration: Connect to MATLAB/Python for custom analytics.

Safety Upgrades: Explosion-proof enclosure for volatile environments.

HEPA filtration for particle-sensitive labs.

Calibration Services: Annual recalibration with NIST-traceable certificate.

Consumables: 10L Replacement silica sand (high-purity, 0.5–1mm grain).

1L Thermal paste for sensor calibration.
