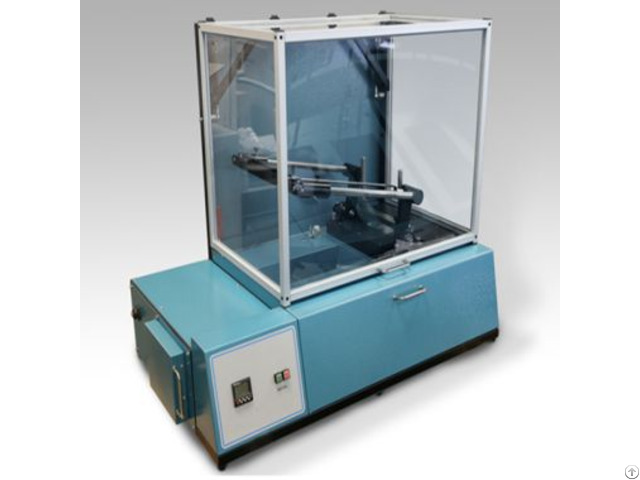

Shoe Shank Stiffness Tester Satra Tm256 - China

standard

satra tm256: flexural and torsional stiffness testing for athletic, safety, and casual footwear.

satra tm194: dynamic fatigue resistance evaluation for shoe midsole and outsole integrity.

product advantages

1 - dual-mode testing longitudinal & torsional stiffness: simultaneously measures bending resistance (flex) and twist rigidity in a single cycle.

universal compatibility: adapts to all shoe types—running, hiking, work, and orthopedic footwear.

2 - high-speed automation 30 cycles/minute: industrial-grade motor for rapid fatigue testing (0–50° flex angle).

zero-drift actuators: maintains ±0.1° angular accuracy over 100.000 cycles.

3 - precision sensing strain gauge technology: 0.01 n·m resolution for torque and 0.1° angular feedback.

self-compensating algorithms: corrects for specimen slippage and hysteresis.

4 - user-centric workflow 7” touchscreen hmi: pre-loaded satra protocols with adjustable test parameters.

real-time curve tracing: live plots of torque vs.

angle during testing.

5 - advanced data management usb/pc connectivity: export raw data, cycles-to-failure, and stiffness coefficients.

cloud integration: wireless sync to lims platforms for collaborative r&d.

technical parameters

specification details

flex angle range 0° to 50° (adjustable in 1° increments)

torsion range ±180° (360° continuous rotation)

test speed 30 cycles/minute (1–60 hz adjustable)

load capacity 1.000 n (flex)

angular accuracy ±0.1° (±0.05° with calibration kit)

power supply 220v/50hz (110v/60hz available)

dimensions (w×d×h) 600mm × 500mm × 1.100mm

weight 95 kg (net)
