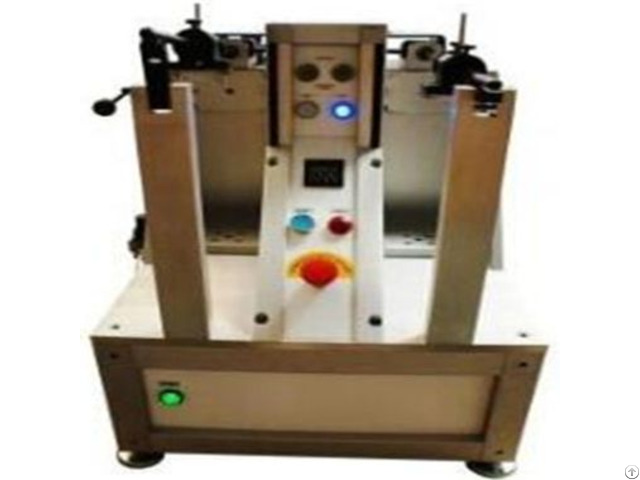

Socks Wear Tester - China

Product Introduction:

Socks wear tester is a special equipment, mainly used to test the wear resistance of socks material.

It evaluates the comfort and durability of socks by simulating the wear and tear of socks during wearing and rubbing, and is an important tool for quality control, product development and research in the textile and apparel industry.

Standards:

EN 13770-2002 Textiles – Determination of wear resistance of knitted footwear – Method C Test principle and process:

The test principle of a sock wear tester usually involves fixing the sock sample on a specific device and conducting friction motion on the sample through a friction head in accordance with a preset trajectory and speed.

After a certain period of friction, the wear resistance of the sample is evaluated by measuring the wear degree of the sample surface.

During the test process, the weight loss, strength loss and other indicators of the socks can be recorded and analyzed, so as to comprehensively evaluate its wear resistance.

Equipment type and features:

Martindale Wear Tester: This is a commonly used sock wear tester that uses a Lissajous curve motion trajectory to evaluate wear resistance by the friction between the friction cloth and the sample.

Easy to operate, accurate test, widely used in textile industry wear resistance test.

Schopper wear tester: The wear resistance of the sample is evaluated by measuring the wear degree of the sample in the process of rotating friction using the rotary friction method.

Suitable for wear resistance test of various textiles, such as cotton cloth, synthetic fiber cloth, etc.

Linear wear testing machine: Using linear friction, suitable for testing the wear resistance of various materials, including plastics, rubber, coatings and so on.

Wide test range and high precision.

For the testing of socks, Martindale wear testers are preferred for their applicability and accuracy.

Tests the abrasion resistance and tearing properties of socks.

Conforms to EN 13770-2002 Textile Knitted shoes and socks abrasion resistance determination in method C and other standards.

Features:

The manufacturer finishes the electric control box with metal baking paint for durability.

It features an imported special aluminum brushed panel, providing an elegant and professional appearance.

Moreover, the transmission sliding mechanism uses imported linear sliders, ensuring smooth operation with no vibration.

The manufacturer treats the base with a metal baking paint process for enhanced durability.

The sampling handwheel uses thread locking, offering good friction and preventing slippage.

Additionally, it includes a large color touch screen with a user-friendly interface, supporting both Chinese and English languages.

Furthermore, the servo drive and motor ensure stable, adjustable speed with extremely low operating noise.

The design equips the leg surface with imported cork for added functionality.

Testing Principle:

Install the sample on the testing mold, rub the sock sample with sandpaper at a constant speed, and cycle every 100 or 500 times to observe if the sample is damaged or thinning.

If so, record the number of times.

Key Specification:

Friction Frequency: 1-999.999 times (adjustable) Reciprocating Stroke: 1-30mm Workstations: 2 Reciprocating Frequency: 125 times/min Power Supply: AC220V ± 10%, 50Hz External Dimensions: 650mm x 600mm x 580mm (L x W x H) Weight: 45kg
