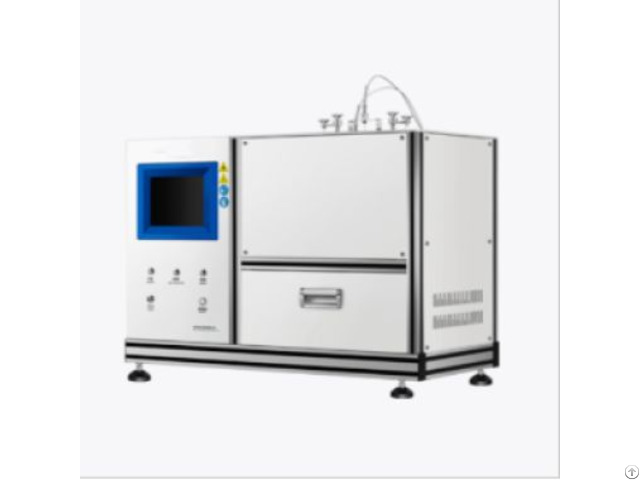

Solid Auto Ignition Point Chamber - China

Product Features

1 - It adopts an embedded processor and the Windows CE operating system.

2 - With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.

3 - It supports two working modes, the "standard mode" and the "custom mode" (during the custom experiment, it can save the exothermic peak value in real - time, etc.

), taking into account both the standardization and flexibility of the test.

4 - It integrates high - temperature heat - insulation technology, temperature control, and precise detection technology.

5 - It uses an electrically heated muffle furnace with natural air - circulation convection to ensure uniform heating of the samples.

6 - The furnace cavity is made of heat - insulating vacuum ceramic fiber, which has a good heat - insulation effect.

7 - The cubic wire mesh is hung at the bottom of the furnace cover, making it safe and convenient to place samples.

8 - It realizes automatic heating control, temperature control, and combustion detection.

9 - A cleaning rod is provided for cleaning the inner cavity's central through - hole.

10 - A debris tray is provided to collect samples falling from the wire mesh and residual samples cleaned out by the rod.

11 - A cooling bracket is provided to place the assembled furnace cover on it for cooling after the test.

12 - It uses a thermocouple sensor to quickly and accurately respond to temperature changes.

13 - It displays the time - temperature curve in real - time, and the original data can be viewed.

14 - The test process is fully automated, requiring no manual intervention.

It supports functions such as parameter setting, data storage, and report viewing.

Technical parameters

Working Environment (5～40)℃, <85%RH Test Objects Solid Temperature Control Range Room temperature～650℃ Standard Rise Rate 0.5 ℃/min Customized Rise Rate (0.1～3.0)℃/min Temperature Measurement Range (0～800)℃ Temperature Measurement Resolution 0.1 ℃ Temperature Measurement Accuracy ±2.5 ℃ below 300 ℃ Heating Chamber Capacity ±(0.75% of the reading) above 300 ℃ Timing Range 2L Mesh Cage Size (0～96)h
