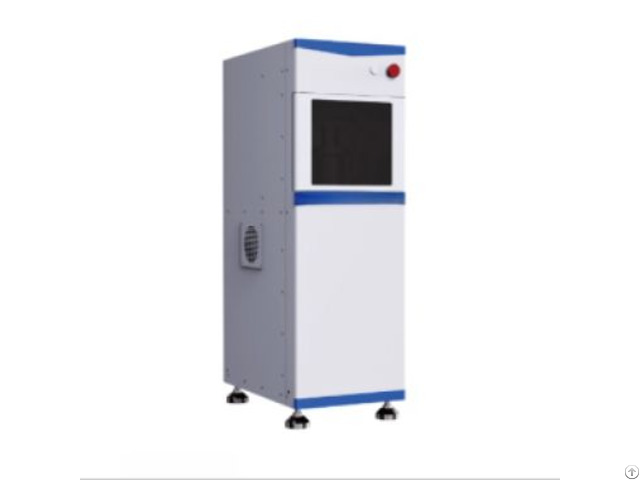

Solid Electrolyte Assessment System - China

Standard

ISO 9001: 2015 (Quality Management System) ASTM E1970-21 (Standard Guide for Electrochemical Impedance Spectroscopy) IEC 62660-2 (Secondary Lithium-Ion Cells for Propulsion of Electric Road Vehicles) RoHS Compliance (Restriction of Hazardous Substances) CE Certification (Conformité Européenne) Product Advantages

Unmatched Precision Sub-micron level ionic conductivity measurement (±0.01% error margin) for cutting-edge battery R&D.

Advanced electrochemical impedance spectroscopy (EIS) with frequency range up to 10 MHz.

Rapid Testing Workflow 80% faster analysis compared to traditional systems via AI-driven automation.

Multi-sample parallel testing capability (up to 16 samples simultaneously).

User-Centric Design Intuitive touchscreen interface with 15+ language support (English, Chinese, German, Japanese, etc.

).

Modular architecture for easy upgrades and maintenance.

Durability & Safety Military-grade enclosure (IP67 rating) resistant to dust, moisture, and vibrations.

Overvoltage/overcurrent protection with real-time self-diagnostics.

Global Connectivity Cloud-based data synchronization via AES-256 encrypted platform.

Compatibility with LabVIEW, MATLAB, and Python for seamless integration into existing workflows.

Product Features

Non-Destructive Testing (NDT): Preserves sample integrity through contactless impedance measurement.

Automatic Calibration: Self-adjusting reference electrode for minimal human intervention.

Customizable Test Protocols: Preloaded templates for lithium-ion, solid-state, and sodium-ion batteries.

3D Visualization Software: Real-time 3D mapping of ionic diffusion pathways and interface resistance.

Accessories Included

High-Sensitivity Probe Kit: Platinum-iridium electrodes (2mm/5mm/10mm diameters).

Non-conductive ceramic sample holder.

Software Suite: License key for SolidAnalyzer Pro (Windows/macOS/Linux).

1-year free access to cloud analytics platform.

Safety & Maintenance: Anti-static gloves (3 pairs).

Calibration fluid (100mL, ISO 17025 certified).

Cleaning kit (lint-free wipes, alcohol solution).

Portability: Reinforced aluminum carrying case with custom foam inserts.

Universal power cord (6 ft, detachable).

Technical Parameters

Parameter Specification

Ionic Conductivity Range 10⁻⁸ S/cm to 10⁻² S/cm

Frequency Range 10⁻³ Hz – 10 MHz

AC Amplitude 1 mV – 1 V (adjustable)

Measurement Time 0.5 – 600 seconds (user-definable)

Data Resolution 24-bit ADC, 16 million data points per test

Power Supply 100-240V AC, 50/60Hz (universal adapter)

Dimensions 420mm (W) × 350mm (D) × 180mm (H)

Weight 12.5 kg (net) / 15 kg (gross)
