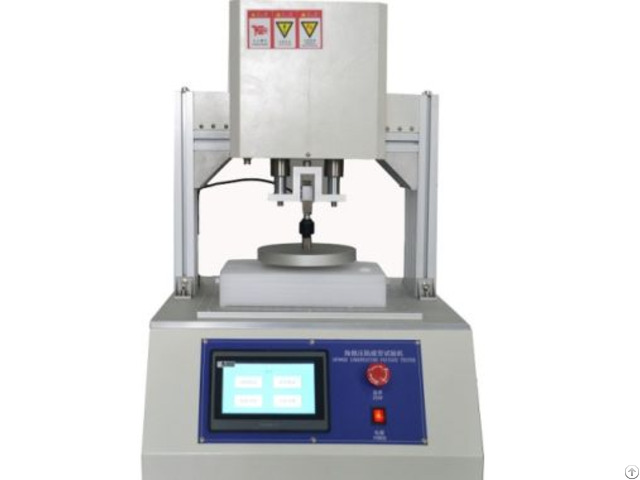

Sponge Foam Collapsible Hardness Tester - China

Purpose:

This machine is used to measure the indentation hardness of porous elastic materials.

The polyurethane foam sample can be tested according to the national standard, and the compressive hardness of sponge, foam and other materials can be accurately measured.

In addition, it can also be used to measure the specified compression hardness of the seat foam (such as backrest, seat cushion foam, etc.

), and accurately measure the compression hardness of each foam part of the seat.

Standards:

ISO 2439: Flexible cellular polymeric materials — Determination of hardness (indentation technique) ISO 3386-1: Polymeric materials, cellular flexible — Determination of stress-strain characteristic in compression ASTM D3574: Standard Test Methods for Flexible Cellular Materials-Slab, Bonded, and Molded Urethane Foams DIN 53576 JIS K6400-6 How it Works:

The sponge foam compression stress test puts the sample between the upper and lower pressure disks, and when the upper pressure disks compress the sample of A certain size down to the concave degree specified by the A method (B method, C method) required by the national standard at the specified speed, the load element on the load cell will feedback the induced pressure to the controller for processing and display, so as to measure the collapsibility hardness of the sponge, foam and other samples.

Functional characteristics：

1 - Automatic zero clearing: After receiving the test start instruction, the system automatically clears zero.

2 - automatic return: after the sample is broken, it will automatically return to the initial position.

3 - change the speed: The machine can change the test speed arbitrarily according to different samples.

4 - indicating value verification: the system can achieve the accurate calibration of force value.

5 - control method: According to the test needs can choose the test force, test speed, displacement and other test methods.

Technical parameter：

1 - control mode: touch screen control; 2 - induction mode: precision load element; 3 - capacity: 200kg; 4 - unit switch: Kg, N, LB; 5 - pressure plate: diameter 200mm, bottom rounded R1mm; 6 - lower platform: 420×420mm, porosity diameter 6mm, spacing 20mm; 7 - the maximum stroke: 75mm; 8 - test speed: 100±20mm/min; 9 - power source: servo motor; 10 - transmission mode: precision ball screw; 11 - power source: single-phase, 220V, 50Hz/60Hz, 2.5A; 12 - Weight: 160kg.
