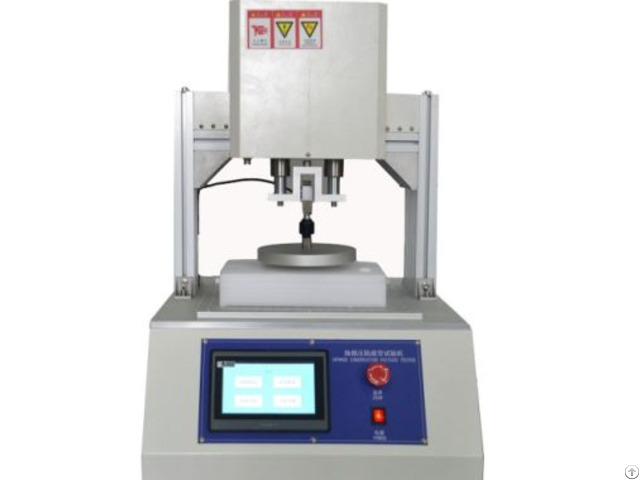

Sponge Foam Flexible Hardness Gauge - China

Standards:

ISO 2439: Flexible cellular polymeric materials — Determination of hardness (indentation technique) ISO 3386-1: Polymeric materials, cellular flexible — Determination of stress-strain characteristic in compression ASTM D3574: Standard Test Methods for Flexible Cellular Materials-Slab, Bonded, and Molded Urethane Foams DIN 53576 JIS K6400-6

Functional characteristics：

1 - Automatic zero clearing: After receiving the test start instruction, the system automatically clears zero.

2 - automatic return: after the sample is broken, it will automatically return to the initial position.

3 - change the speed: The machine can change the test speed arbitrarily according to different samples.

4 - indicating value verification: the system can achieve the accurate calibration of force value.

5 - control method: According to the test needs can choose the test force, test speed, displacement and other test methods.

Technical parameter：

1 - control mode: touch screen control; 2 - induction mode: precision load element; 3 - capacity: 200kg; 4 - unit switch: Kg, N, LB; 5 - pressure plate: diameter 200mm, bottom rounded R1mm; 6 - lower platform: 420×420mm, porosity diameter 6mm, spacing 20mm; 7 - the maximum stroke: 75mm; 8 - test speed: 100±20mm/min; 9 - power source: servo motor; 10 - transmission mode: precision ball screw; 11 - power source: single-phase, 220V, 50Hz/60Hz, 2.5A; 12 - Weight: 160kg.

image.

png
