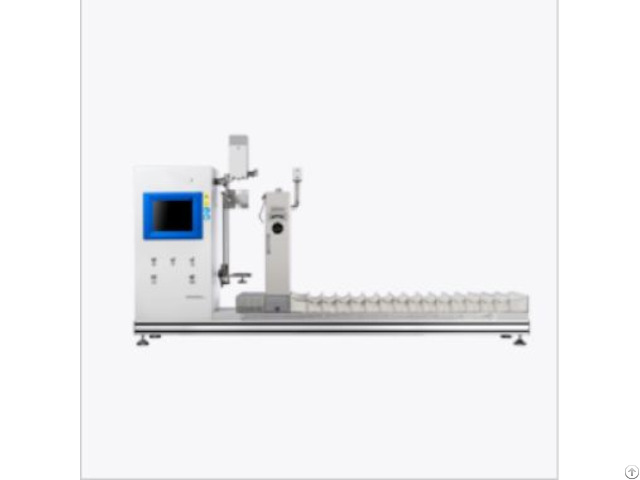

Spray Aerosol Ignition Distance Tester - China

Product Description

Conforms to UN Recommendations on the Transportation of Dangerous Goods - Manual of Tests and Criteria 31.4 Ignition Distance Test for Spray Aerosols and GB/T 21630-2008 Test Method for Ignition Distance for Dangerous Goods Spray Aerosols.

Standards

GB/T 21630-2008 GAT536 NY/T 1860 Product Features

1 - It adopts an embedded processor and the Windows CE operating system.

2 - With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.

3 - It integrates two working modes: the "standard mode" and the "custom mode".

4 - The aerosol sprays automatically, and the aerosol can clamping device can automatically make the can stand upright or turn it upside - down.

5 - The nanosecond - level photosensitive sensor detection module automatically detects whether the spray is burning.

6 - Driven by a hybrid stepping motor and equipped with an optical encoder, it enables precise positioning of the measurement position.

7 - It uses a spark lighter as the ignition source, producing a blue - colored non - glowing flame with a height of 4 - 5 cm, and the flame height is adjustable.

8 - The test process is fully automated, requiring no manual intervention.

It supports functions such as parameter setting, data storage, and report viewing.

9 - The dedicated fire - proof accordion cover can effectively prevent equipment contamination.

10 - It is equipped with a temperature and humidity module to monitor the temperature and humidity of the test environment in real - time.

Technical parameters

Operating Environment (5~40)℃, <85%RH Ambient Temperature Measurement Range (-10~+60)℃ Ambient Temperature Measurement Accuracy ±0.5℃ Ambient Humidity Measurement Range (5~95)%RH Ambient Humidity Measurement Accuracy ±5.0%RH Flame Detection Response Time ≤6ms Flame Detection Distance (15~90)cm Positioning Accuracy ±1mm Minimum Pressing Duration 5s Ignition Method Gas Igniter Aerosol Tank Positioning Aerosol canisters can be turned over automatically Compatible Spray Tank Dimensions Height (120~400)mm, Diameter (30~80)mm
