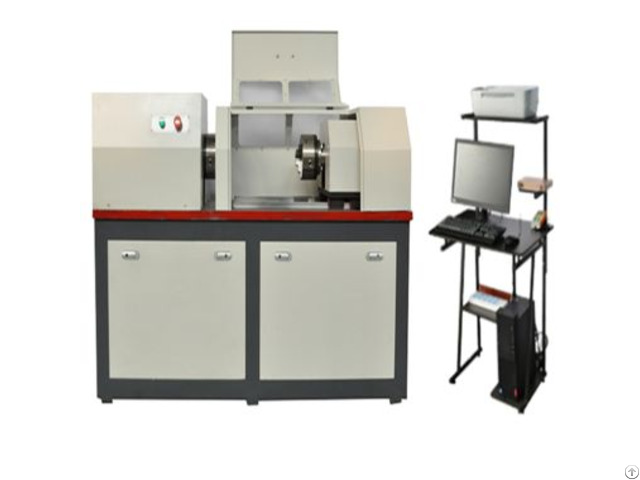

Spring Torsion Fatigue Testing Machine - China

Product Introduction: Spring torsional fatigue testing machine (horizontal) is a new type of automatic torsional fatigue testing machine with digital display and counting, which is mainly used for torsional fatigue life detection of torsion spring, spiral spring, elastic element and friction mechanism.

Test standard: JB/T 9370 torsion testing machine JJG 269 torsion testing machine verification regulations Functional features: 1) Real-time display of running speed, twist Angle, times 2) The user can set the twist Angle, speed and preset number at will within the specified range, which greatly improves the controllability of the whole machine and meets the testing requirements of different users and different samples 3) The test speed shows two units at the same time: t/m, Hz 4) When the set number of tests is reached, the machine automatically stops, and the buzzer prompts 5) The user can freely set the torsion direction according to the characteristics of the sample 6) Automatic storage function, after the test stops, the number of tests can be automatically saved, and the test can continue next time 7) Using absolute rotary encoder, no cumulative error, control accuracy is greatly improved Main parameters: 1 - Total measuring range (Nm) : 10, 20, 50 2 - Adjustable frequency (Hz) : 0-5 3 - Test frequency: according to the actual sample 4 - Adjustable torsion Angle (°) : 300, according to actual requirements 5 - Counting capacity: 999999999 6 - Test station: 1 7 - Power supply: AC 220V±10% 50Hz 8 - Noise: ≤50dB(A)

Company Contact:

• Posted By: Standard International Group (HK) Limited

• Phone: 18355172336

• Address: No.2578 Gu Dai road, Min Hang district, Shanghai, yes , Shanghaai , China

• Email:

• Website: https://standards-groups.com/

• Business Description: Standard Groups is an integrated supplier specialized in providing material test instruments and “The Whole Laboratory Program” solutions.

  The main products cover many areas: Textile and Apparel, Leather and Footwear, Flammability Testing, Filter Material Testing, Automotive Interior, Toy Testing, Non-woven and Geo-membrane, Carpet Testing, Luggage/Furniture/Office Furniture Testing, Material and Parts of Automotive, Weathering and Light Stability Testing, Ovens and Environmental Testing Chambers, Salt Fog Chambers, Materials Testing Machines, 3D Body Scanning and Manikin, Air Quality Monitoring and Measurement, Package Material Testing, Electrical Safety Testing, Optical and Spectroscopy Instruments, Lighting and Color Assessment, Microscopy and Legal Inspection, and relative testing services.
