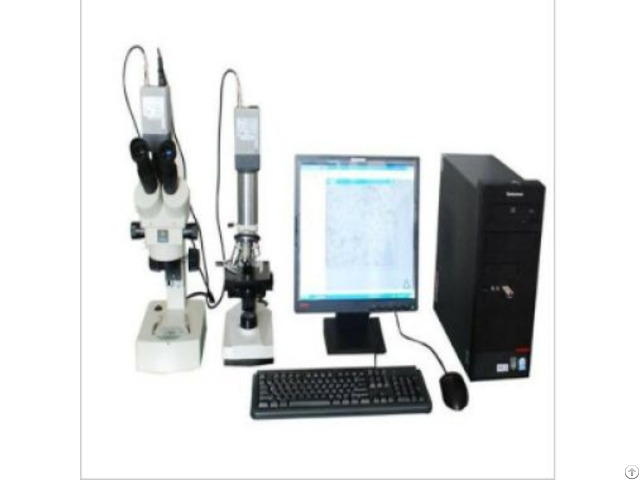

Textile Fiber Composition Analyzer Tester - China

Standard

ASTM D276 (Standard Test Method for Identification of Fibers in Textiles)

ISO 1833 (Determination of Fiber Content in Textiles)

AATCC 20A (Fiber Analysis: Qualitative)

GB/T 2910 (China National Standard for Quantitative Fiber Analysis)

Product Features

Multi-Mode Analysis:

Supports quantitative (chemical dissolution) and qualitative (microscopic/spectroscopi c) testing for comprehensive fiber characterization.

Automatic calibration for cotton, polyester, and wool blends, with customizable settings for specialty fibers.

Safety & Compliance:

Fume extraction system, chemical-resistant casing, and CE/ETL certification for safe handling of hazardous reagents.

Data Management:

Cloud-compatible software stores unlimited test results, generates ISO-compliant reports, and supports barcode scanning for sample tracking.

Universal Sample Compatibility:

Accommodates fibers, yarns, and fabrics up to 50g in weight, including delicate materials like silk and cashmere.

Technical Parameters

Parameter Specification

Fiber Identification Range Natural, synthetic, and blended fibers (cotton, polyester, wool, nylon, acrylic, etc.

)

Measurement Accuracy ±0.5% (quantitative), ±98% (qualitative)

Test Time 60–180 seconds (variable by method)

Sample Weight Range 0.1–50g

Spectral Resolution 1 nm (FTIR mode)

Power Supply 100–240V AC, 50/60Hz, 200W

Dimensions (L×W×H) 500×400×600 mm

Weight 60 kg

Operating Environment 15–30°C, ≤70% RH (non-condensing)

Accessories Included

Reagent Kit: Chemicals for cotton, polyester, and wool dissolution (ISO-compliant).

Microscope Slide Set: Pre-cleaned slides for qualitative fiber examination.

Sample Cutter: Precision tool for uniform fabric sampling (10mm² area).

Calibration Standards: Certified fiber blends for annual verification.

User Manual & Software: Digital guide (multilingual) + cloud-based analytics platform for remote data access.

Ideal For: Textile manufacturers (apparel, home furnishings, industrial fabrics)

Quality control laboratories

Certification bodies (e.g., SGS, Intertek)

Retailers verifying fiber content claims
