Textile Manual Snap Button Tester - China

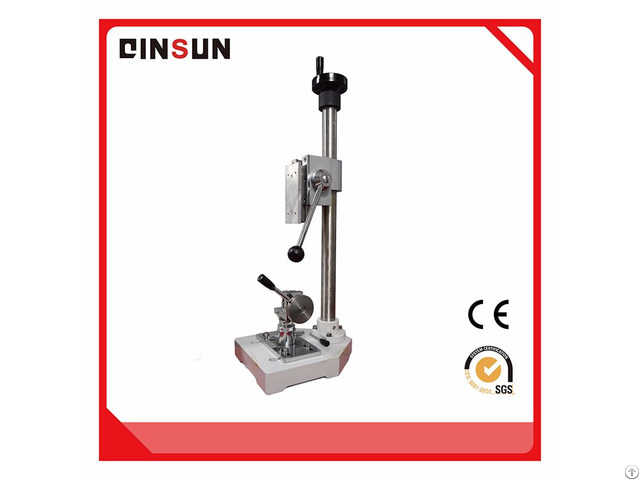

The Snap Tester consists of an Upper Snap Clamp, a Lower Fabric Clamp & Force Gauge mounted on a stand.

The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp.

By turning the Top Flywheel, the operator can apply a specific force and the holding force or the breaking strength can be recorded.

Capability can be enhanced with clamps & accessories for testing of other Snaps, Jean Buttons, Four Hole Buttons & Garments Accessories such as Zippers, Bows, Appliqué, Toggles, Hooks/Bars, and D-Rings, amongst others.

Testing Standards:

ASTM D7142-2/F963, CFR 1500, EN 71 PART 1, GB 6675, ISO 8124, M&S P115A Features:

1 - Ensure the vertical alignment of tension;

2 - Fixed button edge without affecting its adhesion;

3 - Consistent force of 10s continuously;

4 - Elevate and fix the position of the test meter through the handle, easy to change samples

5 - Horizontal hand wheel, designed to cooperate with ergonomic principles to make operators more comfortable;

6 - Safety buckle design makes operation more secure and reliable;

7 - The long machine frame can extend the test scope more widely;

8 - The concealed spring is designed to greatly increase the pin tightening and ensure the test repeatability;

9 - Can reduce the damage caused by slid leakage during test process;

10 - Simple design and accurate test results.
