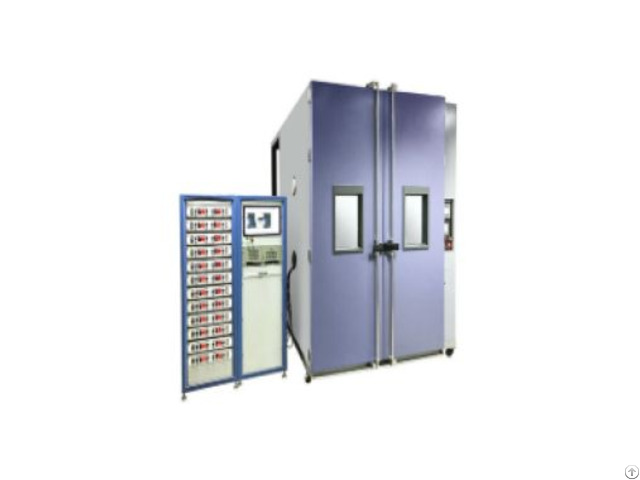

Thermal Cycle Wet Freezing Testing Machine - China

Standard

IEC 61215: Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval UL 1073: Standard for Safety for Enclosures for Electrical Equipment ISO 16750-4: Road Vehicles – Environmental Conditions and Testing for Electrical and Electronic Equipment CE Certification (Conformité Européenne) Product Advantages

Extreme Environmental Simulation -40°C to +85°C Range: Replicates Arctic cold to desert heat in a single chamber.

98% RH Humidity Control: Tests condensation resistance for marine/tropical applications.

Ultra-Stable Performance ±1°C Temperature Stability: Ensures consistent testing across 1.000+ cycles.

≤±2°C Uniformity: Patented airflow design eliminates hot/cold spots.

Rapid Transient Response IEC 61215-Compliant Ramps: 10°C/min heating, 7°C/min cooling (customizable).

Auto-Tuning PID: Adapts to payload changes in real-time.

Energy Efficiency 40% Lower Power Consumption: Advanced insulation and heat recovery systems.

ECO Mode: Auto-powers down during stabilization phases.

Safety First Dual Overload Protection: Thermal cutout and current-limiting circuit breaker.

Door Interlock System: Prevents accidental chamber access during testing.

Product Features

Dual-Chamber Design: Isolated wet/dry zones for simultaneous multi-condition testing.

10” Touchscreen HMI: Preloaded IEC/UL test profiles with customizable hold times.

Remote Monitoring: Wi-Fi/Ethernet connectivity with SMS/email alerts.

Self-Diagnostics: Real-time sensor health checks and error logging.

Glovebox Compatibility: Oxygen/moisture control for sensitive electronics testing.

Accessories Included

Testing Kit: 4x universal sample racks (adjustable for batteries/PV modules/PCBAs).

10x humidity sensor calibration capsules.

Software Suite: License key for EnviroTest Pro (Windows/Linux).

1-year free access to cloud-based test report generator.

Calibration & Safety: NIST-traceable temperature/humidity logger.

Emergency eyewash station (portable).

Maintenance Kit: Spare heating elements and refrigerant filters.

Chamber cleaning solution (non-corrosive).

Documentation: Multilingual quick-start guide (printed + digital).

Compliance certificates for IEC/UL/ISO standards.

Technical Parameters

Parameter Specification

Temperature Range -40°C to +85°C (operational)

Temperature Fluctuation ≤±1°C

Temperature Deviation ≤±1°C (at steady state)

Temperature Uniformity ≤±2°C (empty chamber)

Heating Rate 10°C/min (typical, configurable)

Cooling Rate 7°C/min (typical, configurable)

Humidity Range 30%–98% RH (non-condensing)

Humidity Deviation ±3% FS (at 85% RH ±2%, 90% RH ±2%)

Chamber Volume 500L (standard), expandable to 1.500L

Power Supply 380V/415V 3-phase, 50/60Hz

Dimensions 1.200mm (W) × 1.800mm (D) × 2.000mm (H)

Weight 800 kg (net) / 1.200 kg (gross)
