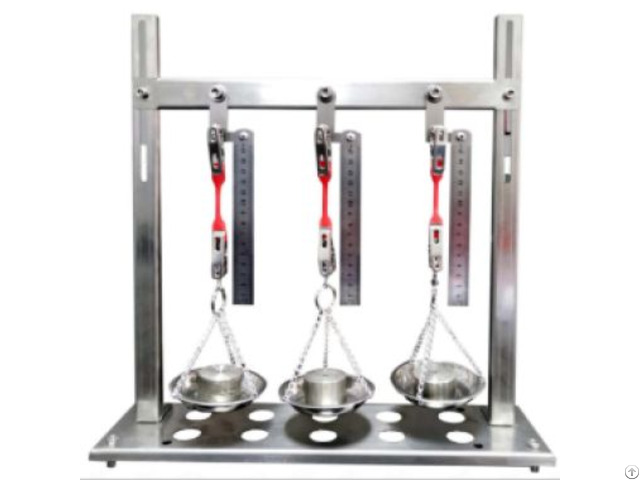

Thermal Elongation Tester - China

Standard IEC 60811-1-1: Electric cables – Thermal elongation tests for insulations and sheaths.

ASTM D638: Standard test method for tensile properties of plastics.

ISO 815: Rubber – Determination of compression set at elevated temperatures.

Product Advantages

Multi-Channel Efficiency

Simultaneously test 3 samples with independent fixtures, cutting analysis time by 66%.

Precision Load Configuration

Modular weight system (1g–100g) enables precise force application for diverse materials.

Corrosion-Resistant Design

304 stainless steel components withstand high temperatures and acidic/basic environments.

User-Centric Operation

Digital temperature controller (±0.1°C accuracy) with overheat protection and audit trail.

Versatile Application

Suitable for cables, polymers, rubber, and composites up to 300°C.

Product Features

Testing System

3 Upper Fixtures: Quick-release clamps for secure sample mounting.

3 Lower Fixtures + Hanging Plates: Adjustable height for vertical alignment.

150mm Stainless Steel Rulers: Laser-etched scale for ±0.05mm elongation measurement.

Weight System

Total Weights: 3×1g, 6×2g, 3×5g, 3×10g, 6×20g, 3×50g, 6×100g (combinable up to 1, 155g).

Suspension Rod: Calibrated for balanced load distribution.

Temperature Control

Range: Ambient to 300°C (programmable ramp/soak profiles).

Uniformity: Forced-air circulation ensures ±2°C zone consistency.

Safety & Compliance

Over-temperature alarms, emergency stop, and CE-certified electrical safety.

Technical Parameters

Component Specification

Fixtures 3 upper + 3 lower clamps (304 stainless steel)

Rulers 3×150mm (0.1mm divisions, laser-etched)

Weights 1–100g modular set (total 3, 450g)

Temperature Range Ambient – 300°C (±0.1°C control)

Chamber Volume 400 × 300 × 300 mm (W×D×H)

Power Supply 220V/50Hz, 1.8 kW (programmable PID controller)

Dimensions (L×W×H) 600 × 500 × 1, 200 mm

Weight 45 kg (net) / 60 kg (gross)
