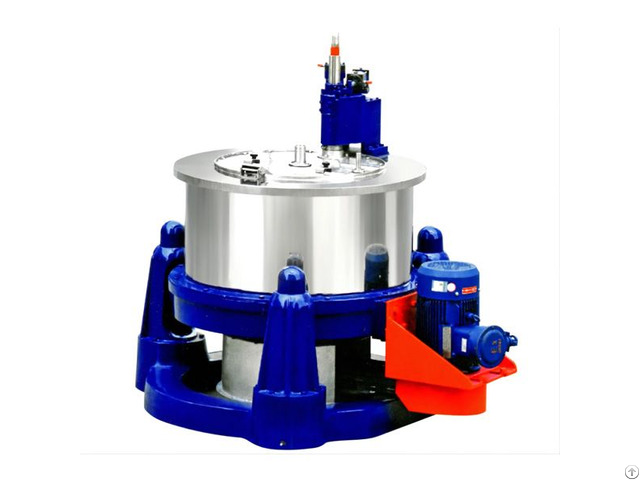

Three Column Automatic\manual Scraper Bottom Discharge Centrifuge - China

OPERATINGPRINCIPLE：

The materials to be separated enter into basket of the centrifuge rotating at high speed through a feeding pipe, affected by the centrifugal force, filtration is realized by filter cloth (filter screen).

Liquid phase material exits from liquid output pipe, while the solid phase material remains in the rotary basket.

When the filter cake ceaches certain amount, stop feeding and start washing, so that the material can be separated.

When the centrifuge rotates at a low speed, operate the manual scraper device, scrape the material in the radial direction first, then scrape in the axis direction.

After the filter cake in the rotary basket is scraped off, recover the scraper and one work cycle is finished.

MAIN FEATURES：

1 - Practical and economical three-column suspended support structure, and spring vibration absorption.

2 - Inverter start-up and speed control, which makes startup smooth.

Relative centrifugal force is adjustable.

3 - Hydraulic drive scraper discharge.

PLC program control, cake layer controller; feeding, filtration, washing, dewatering and discharging is fully automatic.

4 - Dynamic braking.

no friction dust.
