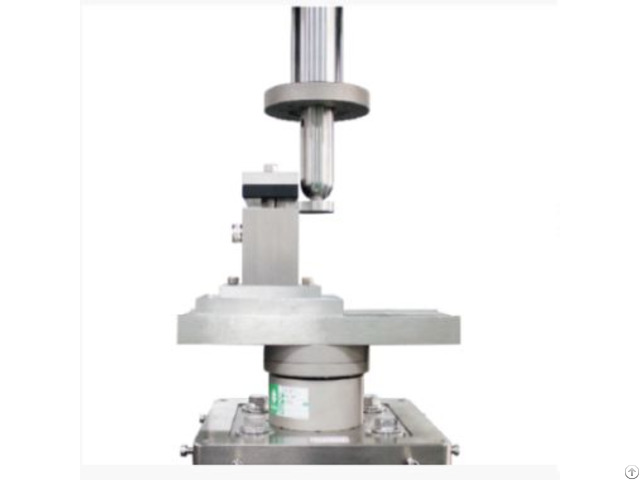

Tibial Tray Fatigue Testing Machine - China

Standard

YY/T 0810 (China): Specifies fatigue testing protocols for tibial trays in total knee arthroplasty, focusing on support and protection of plastic bearing surfaces.

ASTM F1800 (International): Defines methodologies for evaluating the fatigue strength of tibial components under cantilever loading conditions.

ISO 14879-1: Additional compliance for general fatigue testing of total knee joint prostheses.

Product Advantages

Cantilever Loading Precision: Advanced actuator design ensures uniform stress distribution per ASTM F1800 requirements.

5 Million Cycle Endurance: Proven capability to complete YY/T 0810’s 5×10⁶-cycle fatigue test without calibration drift.

Dynamic Load Control: Closed-loop system maintains R=0.1 stress ratio during sinusoidal/random loading (0.1–10 Hz).

Real-Time Fracture Detection: AI-powered acoustic emission monitoring identifies micro-cracks at sub-millisecond intervals.

Intuitive Workflow: 21.5” capacitive touchscreen with gesture control and pre-loaded SOPs for 10+ implant geometries.

Modular Environmental Chambers: Quick-swap pods for simulated physiological (-20°C to +50°C) and corrosive environment testing.

Product Features

Electromagnetic Actuator: 3.000 N peak force capacity with programmable load ratios (R=0.1–10).

Cantilever Loading System: Simulates physiological knee joint moments with ±20 mm axial displacement.

Dynamic Load Control: 0.1–10 Hz frequency range with programmable waveforms (sine, square, random, custom).

Thermal-Mechanical Chamber: ±0.3°C temperature stability with integrated humidity control (10–95% RH).

High-Speed Imaging Ready: Syncs with external cameras for full-field strain mapping (DIC optional upgrade).

Safety First: Triple-redundant emergency stop, overload clutches, and laser-based specimen breakage detection.

Accessories

Tibial Tray Test Fixture Kit: Self-centering collet system (28–40 mm tibial tray compatibility) Laser-aligned loading anvils with diamond-like carbon (DLC) coating Thermal-Mechanical Chamber: 15L capacity with rapid cooling/heating (15°C/min) 316L stainless steel interior with HEPA filtration TestMaster Ultimate Software: Automated S-N curve generation and fatigue limit calculation 21 CFR Part 11-compliant audit trail with blockchain timestamping Remote monitoring via dedicated iOS/Android app Operator Kit: Calibrated torque wrench set (0.5–50 Nm) Specimen alignment gauges (ASTM F1800 compliant) Calibration Bundle: NIST-traceable force calibration weights Temperature/humidity verification probe Safety Kit: Laser safety curtains Acoustic enclosure with 30 dB noise reduction Technical Parameters

Parameter Specification

Max.

Dynamic Force ±3.000 N (6.000 N peak optional)

Frequency Range 0.1–10 Hz (0.01 Hz increments)

Load Ratio (R) 0.1–10 (adjustable)

Axial Displacement ±20 mm (0.1 μm resolution)

Torque Capacity ±20 Nm (0.01 Nm resolution)

Temperature Range -20°C to +50°C (environmental chamber)

Humidity Control 10–95% RH (non-condensing)

Data Sampling Rate 100 kHz (synchronized across 16 channels)

Power Requirements 220V/110V ±10%, 50/60Hz, 2.000W

Dimensions (W×D×H) 1.500 × 1.000 × 2.000 mm

Weight 750 kg (including environmental chamber)

Noise Level <65 dB (A-weighted)
