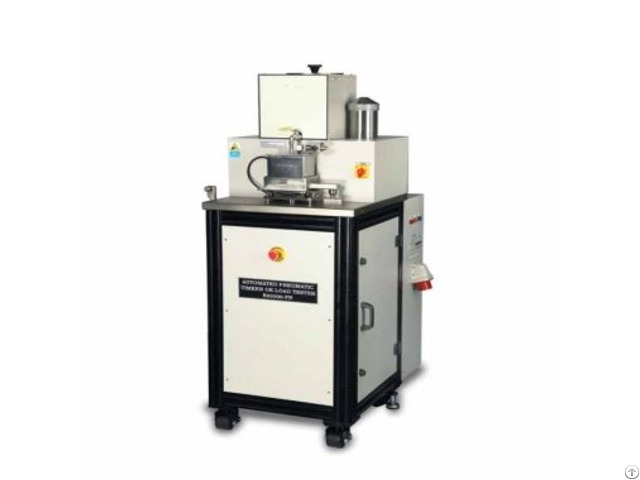

Timken Test Machine - China

Testing Standards

ASTM D 2509 ASTM D 2782 GB/T3142 SH/T0204 Applicable standards

Timken extreme pressure friction testing machines are usually tested in accordance with the following standards and specifications: ASTM D2509: This is a standard developed by the American Society for Materials and Testing (ASTM) to evaluate the performance of lubricants and lipids under extreme pressure conditions.

The test methods and results evaluation of Timken testing machines shall be carried out in accordance with this standard.

ASTM D2782: Also developed by ASTM to evaluate the performance of certain types of lubricants under extreme pressure conditions.

Other relevant standards; Depending on the specific application area and test requirements, other relevant standards and specifications may also be involved.

For example, in China, the testing of the Timken testing machine may also require compliance with relevant national standards such as GBT or industry standards.

In addition, different types of Timken testing machines may have different technical parameters and scope of application, so before testing, you should carefully read the equipment manual to understand the specific performance and test requirements of the equipment to ensure the accuracy and reliability of the test results.

Main uses

Alemken extreme pressure friction testing machine is mainly used to evaluate the extreme pressure performance and abrasion resistance of various tear oil and grease, etc.

Its specific uses include but are not limited to: Evaluating the extreme pressure bearing capacity of lubricating media: The Timken testing machine can evaluate the bearing capacity of lubricating media such as lubricating oil and grease under extreme conditions by simulating the friction and wear process under extreme pressure conditions.

This is of great significance to the research and specification of industrial oils and fats.

Distinguish the performance of EP additives: Through the test of Timken testing machine, it is possible to distinguish the low, medium and high extreme pressure performance of different EP(extreme pressure) additives, which provides a scientific basis for the optimization of lubricant formulation.

Material properties research: In addition to lubricating media, Timken testing machine can also be used for a variety of coatings, coatings, metal, non-metal and other materials performance research, especially their wear resistance and friction coefficient.

Technical data

Test load 10.000 N Automatic loading 0.9 to 1.3 kg/s (pneumatic) Speed 1 - 800 rpm, variable Temperature up to 120°C Grease feeder 45 g/min Feeder 3.8 liters (circulation pump and heater) Test sample (block) 123 mm x 123 mm x 123 mm Test sample (ring 12 mm x 12 mm x 12 mm (diameter) x 12 mm (width)
