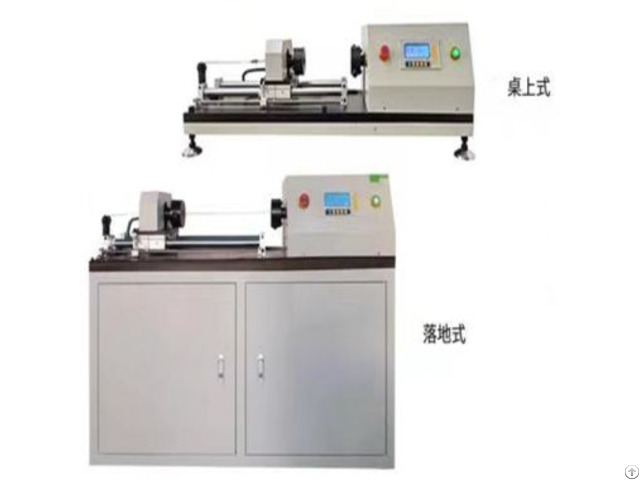

Torsion Test Machine - China

Universal Torsion testing machines are essential tools for measuring the torque and mechanical properties of materials and components.

Torsion testing machines can be equipped with various accessories to test a wide range of materials, including springs, specimens, wires, tubes, bars, and chains.

These machines are ideal for testing both left-hand and right-hand torsion, making them highly adaptable.

Applicable standards: GB/T 239.1-2012 "Metal materials wire Part I unidirectional torsion test method" GB/T 239.2-2012 "Metal materials wire Part II Bidirectional torsion test method" ISO 7800: 2003 "Test method for unidirectional torsion of metal wires" ISO 9649: 1990 Test method for bidirectional torsion of metal wires Product Advantages: Evaluates Torsional Ductility: Directly measures the wire's ability to withstand twisting before fracture.

Standardized Testing: Enables testing according to widely recognized national and international standards.

Reveals Defects: Torsional stress can highlight material imperfections or inconsistencies not apparent under other tests.

Supports Quality Control: Provides a reliable method for ensuring consistent wire quality.

Versatile: Can perform both unidirectional and bidirectional torsion tests.

Controlled Parameters: Allows for precise control of twisting speed and specimen length for repeatable results.

Test principle: Unidirectional torsion: The sample rotates 360 degrees evenly around its axis in one direction as a single torsion to the specified number of times or the sample breaks.

Two-way torsion: the sample rotates 360 degrees evenly around its axis in one direction as a torsion to the specified number of times, and then rotates the same number of times in the opposite direction or the sample breaks.

Main parameters: 1 - clamping metal wire diameter range: 3.0≤d(D)<5.0 2 - the space between the two fixtures: 500mm 3 - Clamp range: 3.0-5.0mm 4 - twisting speed: 30 - 60r/min 5 - Power supply: AC220V 50Hz 6 - Noise: <70 dB(A)
