Ultrasonic Level Measuring Meter - China

ultrasonic level measuring instrument, taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design.

It has perfect level monitoring, data transmission and man-machine communication.

It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit.

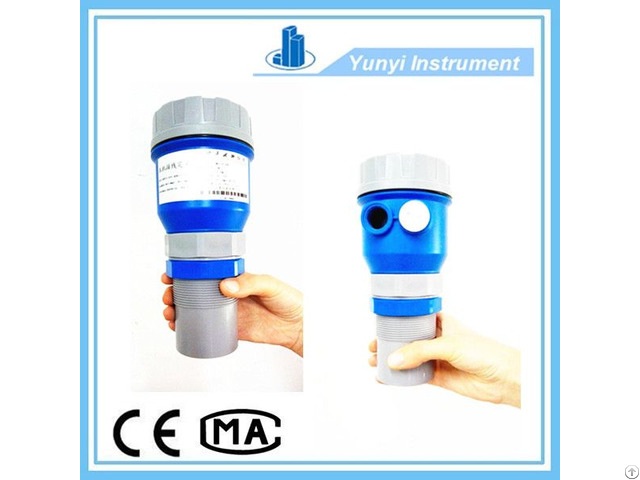

The cover, made of waterproof engineering plastics, is small and firm with ABS probe.

Therefore, it is applicable for various fields concerning level measuring and monitoring.

According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.

Characteristics

DC12-24V wide work voltage

Backup and recovery parameter set

Free adjustment of the range of analog output

Set a filter value to remove

Custom serial port data format

Optional increment/difference distance measurement to measure air space or liquid level

1-15 transmitted pulse intensity depending on working conditions More choices depend on your requirement, as bellowing: 3 NPN output 2 relay output Voltage output RS485output connect with PC Explosion-proof Specifications

Range：5, 8, 10, 12, 15m

Blind zone：＜0.4-0.5m(differ ent for range)

Measure error： 0.25%F.

S

Display： LED or LCD

Display resolution：1mm

Frequency: ：20～350K Hz

Power: 12-24VDC Power consumption：<1.5W


Output (optional)： 4～20mA RL>600Ω(standard) 1～5V\1～10V RS485 3 NPN 2 relays (AC: 5A 250V DC: 10A 24V)

Material：ABS

Dimension：Φ92mm×19 8mm×M60

Electrical interface：M20X1.5

Installation：M60X2 or ￠61MM

Operating surroundings：normal temperat
