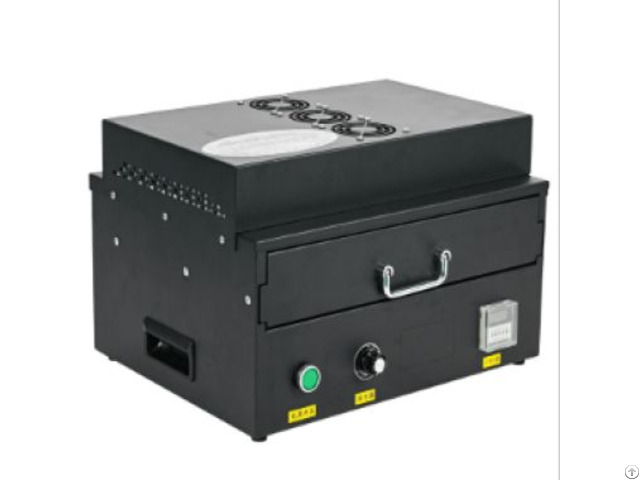

Uv Curing Light Box Tester - China

Standard

ISO 10977: Adheres to industrial standards for UV curing of adhesives and coatings.

ASTM E3022: Meets requirements for radiometric measurements in UV curing systems.

IEC 62471: Compliant with photobiological safety regulations for UV exposure.

Product Advantages

1 - Professional-Grade UV Curing High-Intensity LEDs: 365nm/385nm/405nm wavelength options for targeted adhesive curing.

Flicker-Free Operation: Stable 50.000+ hour lifespan with <1% output decay.

2 - Safety-First Design Fully Enclosed Chamber: Eliminates UV leakage during operation (UVC <0.1 µW/cm²).

Interlock Safety System: Auto-shutoff when door is opened.

3 - Portable Performance 5kg Lightweight Build: Ergonomic handle for benchtop to field use mobility.

110–240V Universal Power: Ready for global lab and production lines.

4 - Industrial Durability All-Metal Housing: Anodized aluminum body resists solvents and impacts.

-20°C to 60°C Operating Range: Stable performance in extreme environments.

5 - Energy Efficiency 800W Max Power Consumption: 70% less energy vs.

mercury arc lamps.

Instant On/Off: No warm-up/cool-down cycles for rapid workflows.

Product Features

LED System: Wavelength Options: 365nm (UVA), 385nm (UVB), 405nm (UVC) selectable.

Uniformity: >90% irradiance homogeneity across 450mm × 400mm work area.

Control Panel: Digital timer (1–999 seconds) with auto-repeat function.

Adjustable power output (10–100%) for precise dose control.

Safety Systems: Emergency stop button with E-Stop loop monitoring.

Overheat protection at 60°C with auto-cooling fans.

Ergonomics: Removable glass window for sample access.

Adjustable shelf height (0–50mm) for 3D objects.

Connectivity: USB port for firmware updates and remote diagnostics.

RS-232 interface for PLC integration.

Accessories & Options

Wavelength Kits: 365nm + 385nm dual-band modules.

405nm deep-cure modules for thick adhesives.

Safety Gear: UV-blocking goggles (OD 5+ at 365nm).

Radiation shielding curtains.

Calibration Services: Annual NIST-traceable irradiance mapping.

Spectral output verification.

Custom Upgrades: Nitrogen purge system for oxygen-free curing.

Chiller integration for high-power applications.

Consumables: 10 × Replacement quartz glass windows.

1L UV-cleaner for optics maintenance.

Technical Parameters

Specification Details

Work Area 450mm × 400mm × 150mm (17.7” × 15.7” × 5.9”)

Wavelength Options 365nm/385nm/405nm (selectable)

Max.

Irradiance 12.000 mW/cm² (adjustable)

Power Supply 100–240V/50–60Hz (auto-switching)

Dimensions (W×D×H) 520mm × 465mm × 510mm

Weight 5 kg (net)

Operating Conditions 0–45°C, <85% RH (non-condensing) image.
