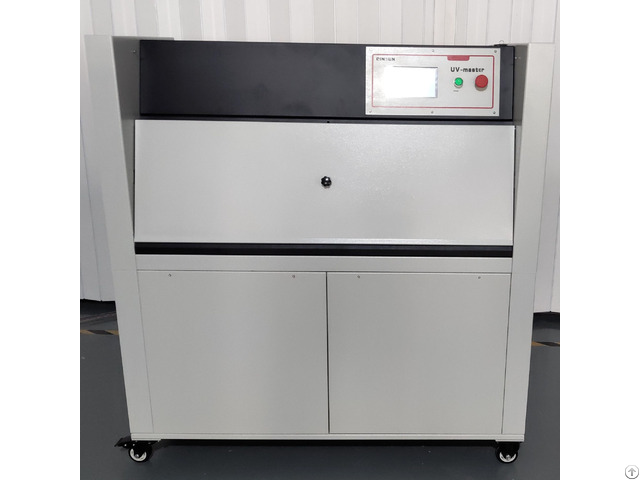

Uv Lamp Aging Test Chamber - China

Standard

JTG E50 T1164: Testing methods for geosynthetics in highway engineering.

GB/T 14522-93: Accelerated weathering tests for plastics, coatings, and rubber in industrial machinery.

GB-T16422.3-1997 & ISO4892-3: 1994: Laboratory light source exposure using fluorescent UV lamps.

Product Advantages

Cost-Efficient Performance: Low operational and maintenance costs, paired with intuitive operation for seamless integration into any lab.

Advanced Automation: Programmable controller enables unattended test cycles with precise timing and automatic transitions between light, condensation, and dark phases.

Consistent & Repeatable Results: Stable UV output and tight temperature uniformity (±3℃) guarantee high repeatability across tests.

Versatile Simulation: Replicates harsh natural climates—UV radiation, humidity, condensation, and thermal cycling—to accelerate aging processes.

Customizable Testing: Optional UV-A340 (315–400nm) or UV-B313 (280–315nm) lamps cater to diverse material requirements.

Product Features

Multi-Factor Aging Simulation: Combines UV exposure, high-temperature aging, and condensation cycles to evaluate color fading, strength loss, cracking, oxidation, and adhesion failure.

Intelligent Cycle Control: Programmable light/condensation cycles (e.g., 4H/4H or 8H/8H) with a 0–9999h59min timer.

Real-Time Monitoring: Digital displays track temperature, humidity, and irradiation intensity during testing.

Compact Design: Optimized chamber layout ensures uniform UV distribution and efficient space utilization.

Wide Applicability: Ideal for geosynthetics, automotive coatings, plastics, textiles, and rubber products.

Technical Parameters

Parameter Specification

Light Temperature Range RT +10℃ to 70℃

Condensation Temperature 50℃ (steam humidification)

Temperature Uniformity ±3℃

Irradiation Intensity 0.55 W/m² (at 340nm)

UV Wavelength Options UVA (315–400nm) or UVB (280–315nm)

Light/Condensation Cycle 0–9999h59min (adjustable)

Lamp Center Distance 70mm

Sample-to-Lamp Distance 55mm

Control System Microprocessor PID with overheat protection

Accessories

UV Lamps: 4pcs UV-A340 or UV-B313 (user-selectable).

Sample Holders: Adjustable racks for flat specimens (max.

12 samples).

Humidity Sensor: Precision probe for condensation monitoring.

User Manual: Multilingual guide (English/Chinese) with safety protocols.

Calibration Certificate: Traceable to NIST standards.
