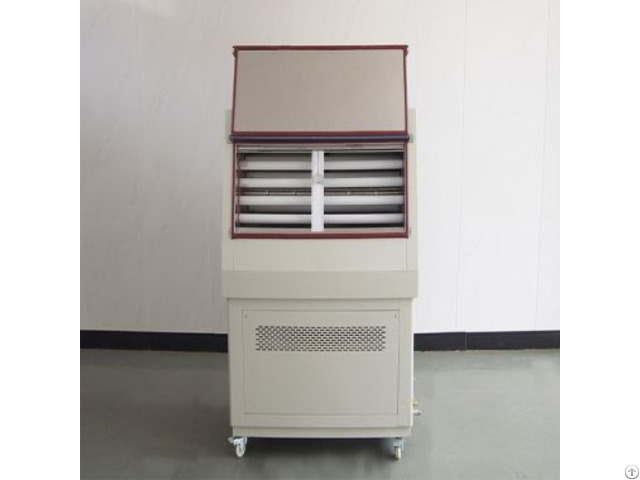

Uv Light Fastness Test Chamber - China

Features and Benefits

1 - STD uv weathering test machine equipped with UVA-340 wavelength range of 315~400nm, can better simulate the ultraviolet part of daily sunlight, UVB-313 wavelength range of 280~315nm, high energy, the aging effect on the material is stronger.

Spectral power distribution does not change with lamp aging, even when used for up to 5000 hours.

2 - The chamber shell adoptsA3 steel plate.

The internal workroom is made of SUS304 corrosion-resistant material, which can prevent workroom from being corrosed due to long-term exposure to ultraviolet light, moisture, etc.

3 - The UV light fastness test chamber is capable of complex environmental simulation, including factors such as ultraviolet light, humidity, temperature and rain, to restore the most realistic use scenario of the test piece.

4 - The standard sample holder can hold up to 56 75mm*150mm samples at a time, which greatly improves the test efficiency.

Custom sample holders for profile-shaped test pieces are also supported.

Specifications

Model UV-SI-260 Internal Dimension (mm) 450*1170*500 Overall Dimension (mm) 610*1330*1470 Specimen Holder Size(mm) 75*150 Specimen Capacity 56 Pieces Irradiation Source Fluorescent UV lamps (8) - 40 W Temperature Range Ambient ～ 90 ℃ ±2℃ Black Panel Temperature (BPT) 35 ～ 80 ℃ Humidity Range ≥95% RH Bandwidth 290 ~ 400nm Irradiance Control 0.3~20 W/㎡ Water Spray Cycle 1~9999H59M (Adjustable) Distance of Specimen and lamp 50mm Controller Programmable color LCD touch screen controller, Ethernet connection Water Supply System Automatic water supply, Water purification system Safety Device Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection Exterior Material Steel Plate with protective coating Interior Material SUS304 stainless steel
