Vacuum Freeze Drier Lgj 10c - China

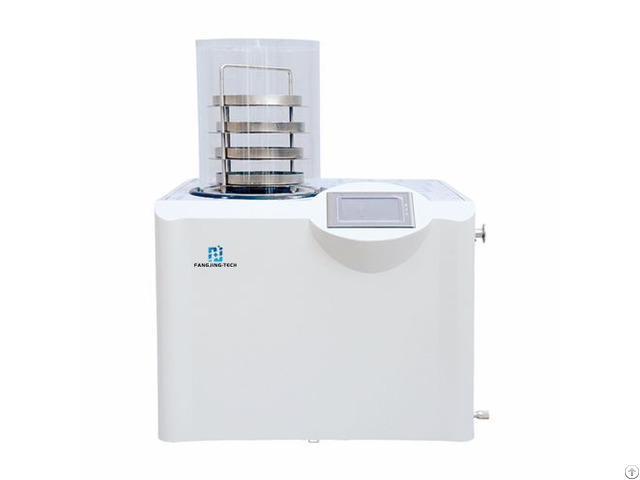

Model Name: Vacuum Freeze Drier

Model No: LGJ-10C Technical Specifications

Technical Specs LGJ-10C Standard Type Capping Type

Effective Shelf Area 0.1m²

Standard Cold Trap Temperature ≤ -68ºC (No-load, environment ≤30ºC)

Limitation Cold Trap Temperature ≤ -70ºC (No-load, environment ≤25ºC)

Standard Vacuum Level ≤5Pa (No-load)

Limitation Vacuum Level ≤1Pa (No-load)

Cooling Rate of Cold Trap Less Than 20 Mins from 20ºC to -40ºC (No-load)

Vacuum Pumping Rate Standard Atmospheric Pressure Down to 5Pa ≤ 15 Mins (no load)

Maximum Water Capture 3 KG

Shelf Size Φ210 mm

Shelves 4 3

Spacing of the Shelves 50 mm

φ22mm Penicillin Bottles 200 150

φ16mm Penicillin Bottles 384 288

Optimal Handling for Solution Material 2L

Exterior Dimensions (W×D×H) 610mm×610mm×460mm

Weight 85 KG

Power Supply AC 220V/230V 50Hz

Power 1250W

Temperature to Place ≤ 30ºC Advantages

• Personalized Service

We provide personalized and accurate solutions according to user's requirements and material characteristics, through one to one communication and experimental analysis.

• Modular Design

Modular design for our products that makes advantages of convenient installation and transportation, flexible configuration, simple operation and reliable quality.

• Efficient Treatment

Digital dynamic control system to be used, to make it with system optimization and efficient drying for materials.

• Technical Support

Dedicating technology of freeze drying and development for equipment, fast and reliable after-sales service.
