Waste Paper Chain Conveyor Equipment - China

Chain Conveyor is mainly used for conveying various kinds of pulp board, waste paper in bulk and in bundle which can be horizontal conveyor or inclined conveyor(<30°).

Chain Conveyor Main Feature

1 - Adopt specially made chain drive one-time impact stamping, trough plate to convey material, which has advantages of large capacity, low motor power, less wear, reliable operation and high efficiency.

2 - Trough plate punch forming which high strength and excellent in crushing effect.

3 - Chain board is closed designed to prevent material leakage.

4 - Two rows of chain adopt long axis to prevent chain running deviation.

5 - Two rows of idler traction chain and hollow roller shaft, and oil can be injected from pin roll to shaft sleeve and wear-resistant zinc-copper bushing.

6 - Raw material feeding plate adopts V design( more than effective conveying width 400mm) to improve raw material throughput.

7 - Orbit type running, operate steadily and reliably, with low friction and low power consumption.

Chain Conveyor Structure

The Chain conveyor is mainly composed of driving device, tension device, link Plates, chain wheel and rack.

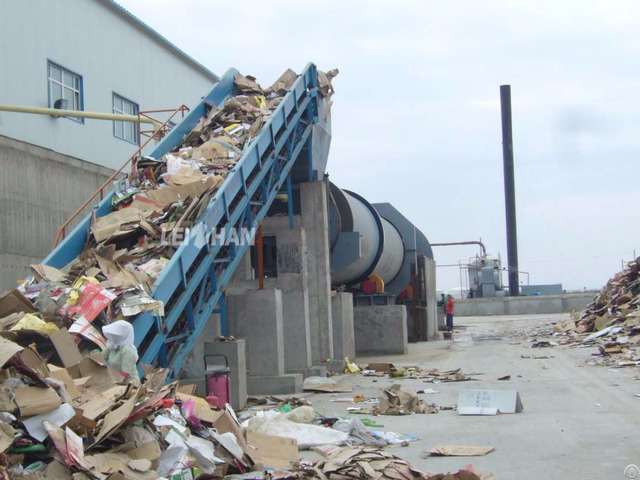

The machine adopts chain to drive through plate to transport raw materials into the drum pulper for pulping.

In order to meet the needs of the users and technical layout requirements, the transmission installation of chain conveyor is divided into left type and right type(look up along the material running direction, transmission installation in the right of the machine is right type, Otherwise for the right type.

It is the best choice of waste paper and pulp plate conveying equipment.
