Waterproof Signal Connector Cable - China

HIGO CONNECTOR-F.

S-Z205

Easy-plugin without poke-yoke

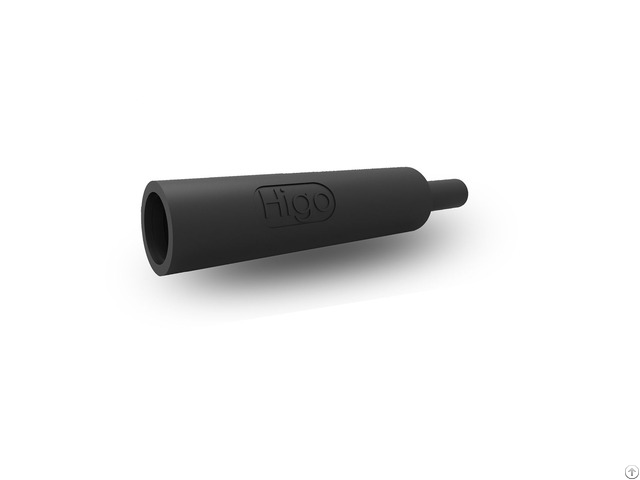

Waterproof signal connector cable

Customized solutions

bike Signal connector description

bike Signal connector Electrical Characteristics

Rated Voltage 48V AC

Rated Current 2A

Withstanding Voltage 500V

Insulation Resistance ≥20MΩ

Contact Resistance ≤10mΩ

Mechanical Characteristics

Mating Type Insertion Force 60N Max, Extraction Force 20N Min

Mating Cycles 200Times

Performance

Operation Temperature -25℃~+80℃

Protection Degree IP67

Max Outer Diameter 4.8mm

Wires Specification

Mating Length 35.4mm

Contact Material Copper alloy plated with gold which conforms to military standard

Wire Section 0.14mm²

Higo has an experienced and dynamic research and development team, all of whom have the world's first-class automotive wiring harness development industry experience, rich knowledge, and can solve a variety of complex needs.

We are professional Signal connector manufacturer.

Company Contact:

• Posted By: Shanghai Higo Electrical Equipment Co., Ltd.

• Phone: 86 512 51918068

• Address: No.17,Qingfang Road，Changshu, Suzhou , Jiangsu , China

• Email:

• Website: http://www.higocon.com/English/Home

• Business Description: Shanghai Higo Electrical Equipment Co., Ltd. is a high-tech company committed to the design and manufacture of advanced electrical connectors, and provides solutions for connector and cable and electromechanical products.

  The company's products range, is widely used in mechanical and electrical equipment, transportation, energy exploration and production, aerospace, medical, nuclear technology, military and other professional applications; We can not only supply high-quality products comply with relevant standards, but also can provide customized service products of high quality and fast; all products are through relevant application certification, meet the requirements of environmental protection.

  The process of Higo is the process of serving customers and being successful with their customers! We are diligently and diligently doing everything, and we are full of confidence to meet every challenge.

  Higo can supply signal connector, motor connector and battery connector, etc.

  Our product's reliability is guaranteed and it can give you a good use experience.
