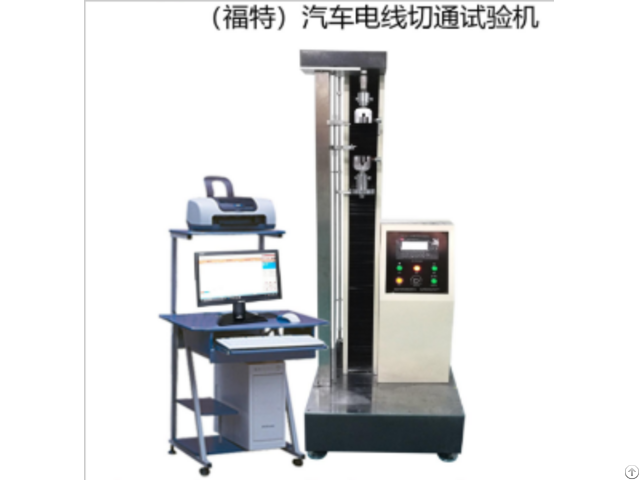

Wire Cut Through Tester For Ford Automotive Wires - China

Applicable Standard: Engineering Specification - Ford Global Wire specification, PART NO.

ES - AU5T - 1A348 - AA Technical Parameters: 1 - Sensing method: High - precision load cell (sensor)

2 - Capacity: 200KG

3 - Cut - through speed: 10mm/min

4 - Effective measurement range (%): 0.5 - 100

5 - Accuracy class: Grade 1

6 - Load accuracy: Within ±1% of the indicated value

7 - Display: Controlled and recorded by computer software

8 - Equipped with an automatic stop function upon cut - through 9 - Overload protection: The machine will automatically activate protection when the load exceeds the maximum by 10%

10 - Power system: AC servo motor

11 - Fixture configuration: One set of fixtures selected according to the user's product requirements

12 - Power supply: AC 220V±10%, 50HZ, 5A

13 - Dimensions: 56X80X170cm 14 - Diameter of the cut - through steel wire: 0.45mm

15 - Cut - through test voltage: Less than 24V
