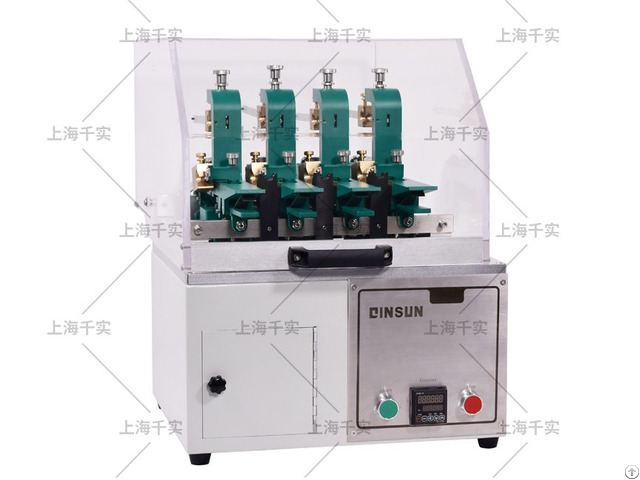

Wyzenbeek Abrasion Tester For Textile - Chinaprice: 1.00 Dollar US$
Oscillator Abrasion Tester is also named as Wyzenbeek Abrasion Tester, used to determine the abrasion resistance of fabrics when rubbed against a standard abradant or a wire mesh screen in a backward and forward motion over a curved surface.
Particularly it`s suitable for abrasion resistance of fabrics used in the automotive and furniture industry.
The instrument follows the U.S. standard with four friction heads and electronic counters to control the operating cycle.
ASTM D4157: Standard Test Method for Wear Resistance of Textiles (Swing Roller Method) Work Principle
The long strip sample fabric is mounted on the front and rear fixtures of the friction head with a certain tensioning force applied.
The friction medium is installed on the circular grinding platform.
Make the sample contact with the friction medium and apply a certain load on the sample.
The friction platform moves forward and backward to abrade the sample.
After a certain number of friction, assess the change of sample's fracture strength.
1 - Modern efficacy design.
2 - The suction device is connected to an auxiliary vacuum cleaner.
3 - Sealed gear actuator ensures quiet operation.
Test number 4
Abrasion table Cambered surface -R100mm, Length-400mm
Test stroke 762 mm
Abrasion velocity 901 /min(double friction)
Tension adjusting weights 340g (The force applied to the sample can be adjusted from 4.45 to 26.7 N)
Load weight 150g (adjusted from 4.45 to 15.575N)
Tension of sample 17.8N(adjustable)
Sample loading 13.4N(adjustable)
Sponge rubber pressure pad 500mm(1mm)
Instrument material Stainless steel
Surface treatment Paint spraying
Sample size 2453 mm
Dimension 50L50W 60H cm
Power supply 220V, 50Hz, 0.05A Accessories and Consumables:
Rubber pad (8 / bag)
Metal mesh - Wyzenbeek (4 / bags)
Standard abradiant #10 cotton canvas - 60 inch x 5 yards
Fine sandpaper for cleaning rubber pad
Nylon brush, soft fur
