X5 Hma Pipeline Robot - China

X5-HMA pipeline CCTV detection robot is a new product based on industrial computer system design, using laptop instead of traditional master control.

The robot can capture pictures of defective spots in the detection process so that you can get an inspection report immediately after the completion of detection.

In addition, slope curves of the pipeline can be obtained in real-time during the detection process, which helps you determine the deposition inside the pipeline.

And a panoramic image of the inner wall of the pipeline will be produced by using fish-eye lens combined with “PipePano” panoramic video analysis software for pipeline detection, so that more precise, quantifiable analysis and interpretation of the dimension of diameter and crack width will be conducted.

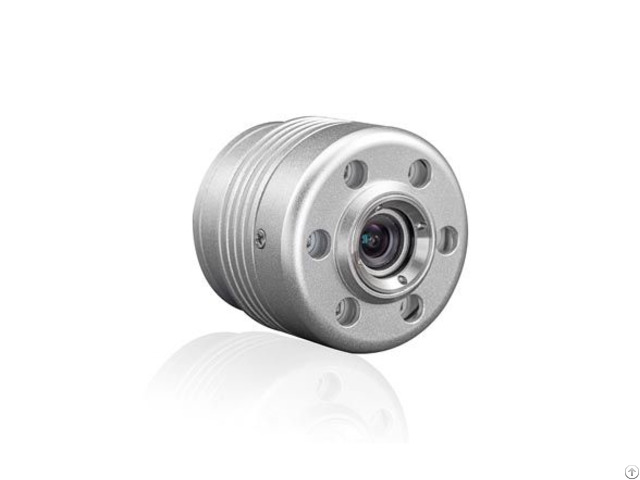

X5-HMA pipeline CCTV detection robot consists of four parts: crawler, lens, cable reel and control system, among which, the crawler can carry different types of lenses such as revolving lens, direct view lens and fisheye lens.

The robot responds to operation commands from the control system linking the cable reel, such as the crawler’s moving forward, backward, turning, stopping and speed adjustment; lowering and light control; lens’ horizontal or vertical rotation, focusing, zoom, front and rear view switching, etc.

In the detection process, the control system can display in real-time and record pictures sent from the camera and the status information of the crawler, and remarks can be input on the touch screen.
