Xy Axismanual Linear Stage Manual Displacement Station Pt Xy24 80c R L - China

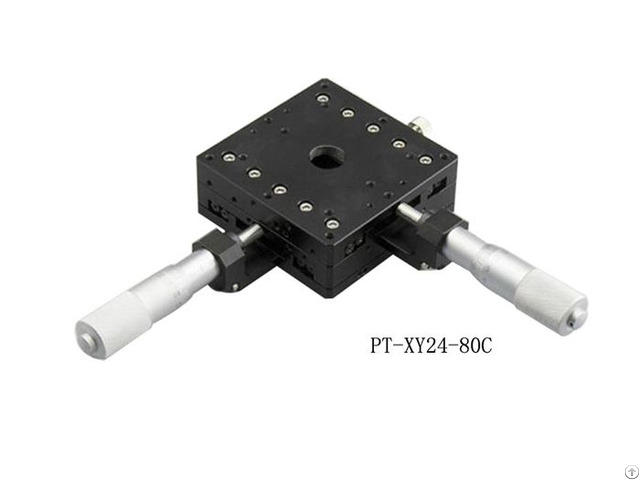

XY AxisManual Linear Stage, Manual Displacement Station PT-XY24-80C/R/L

Manual Linear Stage

Manual Stage

Model Number PT-XY24-80C PT-XY24-80R PT-XY24-80L

Actuator Type Micrometer Head

Operating Position Center Right Left

Minimum Scale 10μm/degree

Platform Size 80×80mm

Travel Range ±12.5mm

Travel Guide Crossed Roller Bearing

Load Capacity 4kgf(29.4N)

Moving Precision Straightness 3μm Pitching 40” Yawing 20”

Parallelism 50μm

Driving Parallelism 20μm

Weight 1.8kg

Surface Material Aluminum Alloy BLACK-Anodized

ADVANTAGE: PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages, High quality China Motorized Linear Stage.

They can be any combination, building block structure, can satisfy any scene usage requirement.
