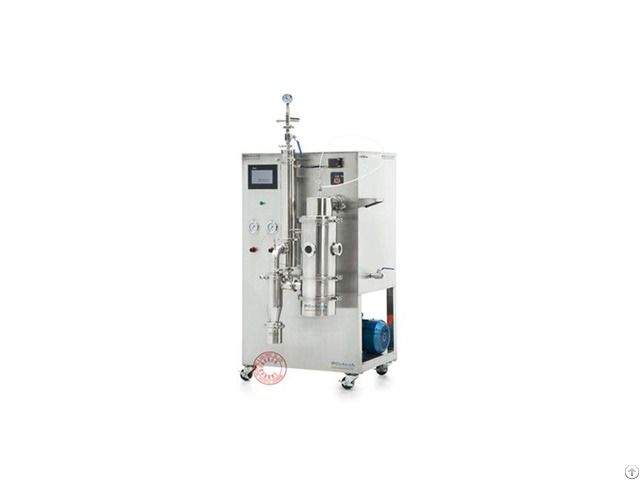

Yc 2000 Low Temperature Vacuum Spray Dryer - China

Shanghai Pilotech Instrument and Equipment Co., Ltd., after long-term communication with researchers, realizes that low-temperature spray drying is able to solve the problems of drying of heat-sensitive material effectively.

Therefore, we developed the YC-2000 lab vacuum spray dryer for laboratory.

The dryer not only inherits many advantages of YC-015 mini spray dryer, but also integrates the merits of vacuum drying creatively.

It is capable of drying material rapidly (1 second) when the temperature of inlet air is around 50℃.

The damage to activity or structure of material during drying is completely prevented.

It is a convenient and safe method for drying heat-sensitive material, such as biological products (e.g. enzyme preparation and viable bacteria), extract of natural product from traditional Chinese medicine with high sugar content, heat-labile high polymer material, and material that gasifies when contacting with heat.

YC-2000 lab vacuum spray dryer Controls & Functionality YC-2000 lab vacuum spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying.

Both use a clear touch screen display, the operator can control the following functions: Inlet Temperature Airflow Volume Air compressor flow Pump Speed De-blocker Frequency YC-2000 lab vacuum spray dryer Easy to use Color Touch Screen, Fast setup and cleaning times Scale up to pilot or industrial scale possible.

Visible process due to glass assembly Adjustable particle size (1 – 100 microns) YC-2000 lab vacuum spray dryer Two Fluid Nozzle with SUS316L stainless steel The stainless steel spray assembly consists of an inner tube for the liquid sample leading to a small diameter jet.

An outer tube directs compressed air to the nozzle.

All units are supplied with 0.7mm jets, other sizes are available as accessories.

The spray assembly incorporates an automatic de-blocking device that prevents the jet nozzle from becoming blocked, the de-blocking needle is activated by an integral compressor.

De-blocker is sometimes necessary with materials which may solidify or when large particles in suspension cause blockages in the jet.

Temperature protection The heater has an extreme high temperature when experiment finished, which needs air blower to continue working in order to reduce the inside temperature and ensure the safety of equipment, YC-2000 spray dryer can control air blower running automatically, even the operator wants to turn off the air blower, the system would prevent the operator until the temperature of system reduce to the default security state of system ; SUS 304 stainless steel Spray chamber, cyclone separator, collector are all made of SUS 304 stainless steel .

It can work in a no-pollution and stable environment, and sight glass equipped so the whole process can be inspected.

All the spare parts are easy to install and clean.

Trusted by the users Over 1, 500 domestic customers of top universities, enterprises and research institutes use our mini spray dryer.

And exported to more than 40 countries & regions such as the United States, Italy, South Korea, Mexico, Singapore, Canada, Malaysia, Chile and Russia etc.

Sr.

no Parameter Pilotech YC-2000 vacuum spray dryer

1 Power 7KW, 380V, 50/60 Hz

2 Evaporating Capacity 1000～1500ml/h for water

3 mini.

Input temperature 50⁰C

4 Heater power 3500W

5 Spray gas 4.2mᶟ/h, 2-5bar

6 Nozzle jet 0.7mm standard/(0.5/0.75/1.0/1 - 5/2.0mm available)

7 Nozzle type Two fluid nozzle

8 Possible particle size range 1-25µm

9 Operation mode Automatic/Manual

10 Max.

Sample feed 1500ml/hr

11 Minimum sample volume 30ml

12 Spray chamber material SUS 304 Stainless steel

13 Inlet temperature 50～200⁰C

14 Cyclone separator material SUS-304 Stainless steel

15 Body material SUS-304 Stainless steel

16 Seal of cyclone/cylinder Silicone

17 Outlet temperature 45⁰C

18 Dimensions 1050*1050*1850

19 Weight 170KG

20 Display 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency

21 Thermal protection Blower does not stop until temp <90⁰C

22 De-block Automatic

23 Atomizer material SUS 316 Stainless steel
