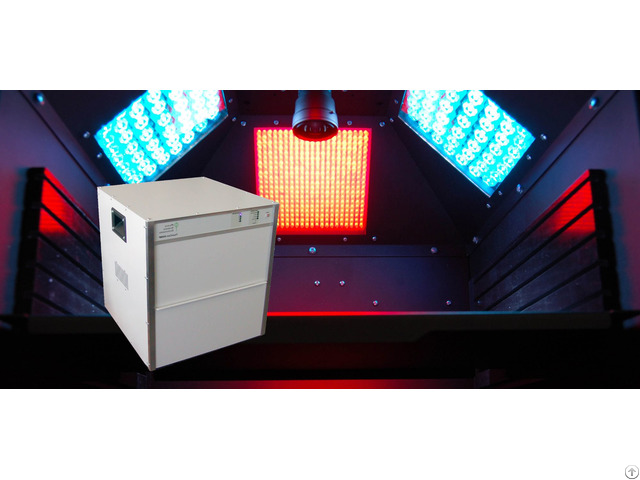

Z100 Fluorcam Closed - China
price: contact company for price
The Z100 FluorCam – Closed System is a chlorophyll fluorescence imaging system designed for non-invasive studies of photosynthetic parameters in plants and algae via chlorophyll fluorescence.
The Closed FluorCam System Z100 consists of a high resolution CCD camera (720×560 pixels), 4 fixed LED panels that illuminate the sample, imaging software with protocols and 7 position filter wheel (optional) if imaging of other proteins’ fluorescence (i.e. GFP) is required .
The LED panels provide uniform irradiance over samples up to 10 x 10 cm – suitable for small plants, detached leaves, petri plates with seedlings or algal cultrures, etc.
The system allows dark adaptation and includes a high-performance PC and a comprehensive software package Features
Applications
Specifications
References
High resolution CCD camera based imaging system
4 LED panels for standard excitation
Optional additional LED panel available around the CCD camera
User friendly software with protocols for Fv/Fm, Kautsky induction, Quenching analysis, Light Curve, steady state fluorescence (standard)
Optional protocols for QA re-oxidation, Fast fluorescence induction (OJIP) with 1µs resolution, PAR absorptivity and NDVI reflectance index
Measurements of up to 50 different chlorophyll fluorescence paramters
Imaging of other fluorescent proteins (GFP, YFP etc) with optional filter wheel, filters, and LED panels
Includes dark adaptation chamber
