Frp Membrane Housings R80s300 Aluminium Cap - China

Frp membrane housings r80s300 - aluminium cap element frp membrane housings applicable to: dow, hydranautics, osmonics, koch, toray, csm, vontron, bdx, etc.

standard: iso9001, iso14001, ul/nsf

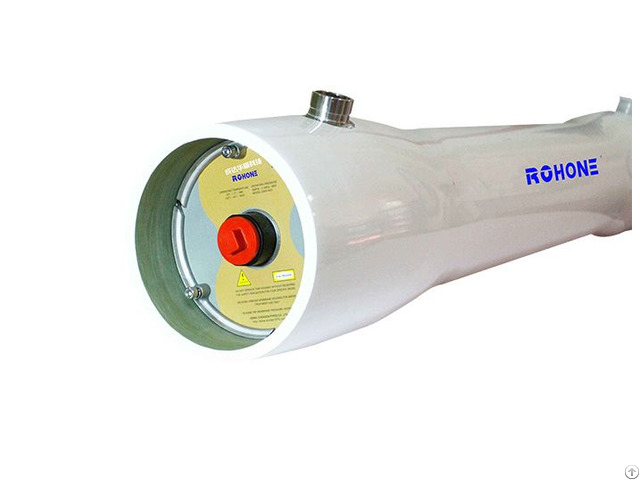

rohone aluminium cap frp membrane housing pressure vessels

8 inch frp membrane housing price

side entry design

available in 300-600 psi pressure rating

accommodates standard make 8" membrane element

element length: 40" x (1-8)

applicable to: dow, hydranautics, osmonics, koch, toray, csm, vontron, bdx, etc.

standard: iso9001, iso14001, ul/nsf 8 inch frp membrane housings key features:

operating temp range: -10°c ---49°c

internal permeate port not to exceed 125psi(0.88mpa)

operating ph range: 3 – 11

cleaning ph range: 2 – 12 (less than 30 minutes)

mirror inner wall and brightly surface.

multi-ports option

white color is as standard.

customized colors are also available.

asme un-coded economy series or saving ro systems cost 8 inch frp filter housings quality assurance

hydro-static leakage test pressure:

standard:

100% test, not sampling 100, 000 times cycle test burst test with 4 times of its operating pressure 100% qa test with 1.3x design hydraulic pressure.

asme: 1.1x design pressure 100% qa inspection and cleaning before final

packaging and delivery to customers.

submitted for nsf standard 61 8 inch frp ro membrane housings applications:

rohone aluminium cap frp membrane housing pressure vessels are widely used for industrial waste water treatment, seawater desalination, brackish water desalination, ro system for electronics, electric power, food & beverage, metallurgy, chemical, pharmaceutical and other fields.

8 inch frp filter housings notice:

please operate in accordance with user guide!

all information is subject to change without prior notice.

please contact us for the latest product information and specifications.
