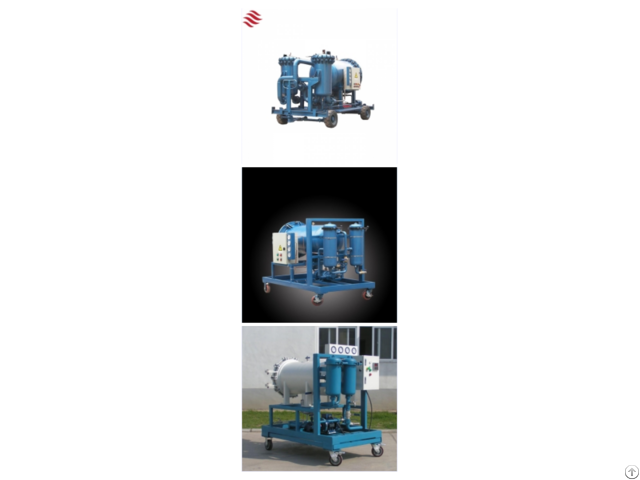

Fuel Coalescence Separation Oil Filter - China

It integrates the functions of precise filtration and efficient dehydration, and uses advanced "coalescence separation" technology to dehydrate, which has high efficiency and strong ability on dehydration.

The presence of water in the hydraulic lubrication system will cause the oil to oxidize, deteriorate the oil, reduce the oil film thickness and the lubricity, which cause the oil to denature and polymerize to form macro-molecules, change the oil viscosity, form organic acids, then corrodes the metal surface, reduce or lose the dielectric strength of the oil.

For traditional filtration and separation equipment, it is particularly difficult to isolate another liquid from a mixed liquid, coalescence &separation filter oil machine developed by my company integrating precision filtration and high dehydration, which can clean the particulate impurities in the oil and emulsified water, free water, but does not harm the quality of original products .

For the oil containing a large amount of water, the separation effect is particularly significant, the separation speed is as several times to dozens of times as the traditional speed.

The product application:

● Purification of turbine oil and transformer oil

● Remove water and impurities of hydraulic lubrication system oil filtration

● Access to the hydraulic lubrication system to improve the cleanliness of the system

System features:

It integrates the functions of precise filtration and efficient dehydration, and uses advanced "coalescence separation" technology to dehydrate, which has high efficiency and strong ability on dehydration.

Especially the separation of a large amount of water in the oil., it has the incomparable advantages compared with vacuum method and centrifugal method, and can break most of the emulsified structure of oil and water in the medium.

Through the filtration of the particle filtration system, the cleanliness of the medium can be controlled stably in the requirements of the system, so as to make the cleanliness of the oil; Do not change the physical and chemical properties of oil, increase the service life of oil; Small energy consumption, low operating cost; System configuration is good, continuous performance is strong, suitable for online operation.

Particle filtration system:

Use high efficiency filter material as filter medium, and large filter area design can easily filter out the very fine particles and impurities, so that oil products can achieve a high degree of cleanliness.

Coalescence system:

The coalesce system is composed of a set of coalesce filter elements.

The coalesce filter element adopts a unique polar molecular structure.

After passing through the filter element, the free water and emulsified water in the oil are coalesced into larger droplets, which are then settled into the water storage tank under the action of gravity.

Separation system:

The separation filter element of the separation system is made of specific hydrophobic material.

When oil passes through the filter element, water droplets are blocked on the outer surface of the filter element and coalesced with each other until they settle into the water storage tank due to gravity.

Close the valve and stop draining.

Drainage system:

The separated water is stored in the tank.

When the interface height reaches the set value, open the valve to drain the water until it reaches the lower level, close the valve and stop draining.
