Kobelco Air Oil Separator Ps Ce03 506 Compressor Parts - China

Short info:

Working Time <4000h

Initial Pressure Difference<0.02mpa

Residual Pil Amount<3ppm

Model NO: PS-CE03-506

Standard Component: Standard Component

Category: Oil Air Separation

Micro: 0.1um

Separation Mode: Filter Type

Pressure: Low Pressure

HS Code: 8421399090, 842199090

Cap: Carbon Steel

Transport Package: Carton Boxes

Origin: China

Customized: Customized

Material: Carbon Steel

Object: Fertilizer

Installation: Vertical

Distillation Equipment Type: Steam Distillation Equipment

Application: Industry

Model: PS-Ce03-506

Trademark: Qingdao Futai Specification: 200*200 Product Description

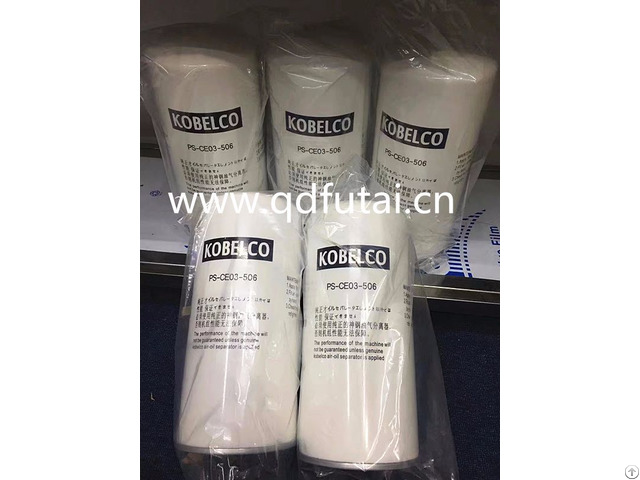

Replacement Kobelco Air Oil Separator Ps-Ce03-506

1 - Filtering precision: 0 - 1 Micron .

2 - Oil contained in compressed is below 3ppM.

3 - Filtration efficiency: 99.99%.

4 - Service life is approximately 4000h.

5 - Initial pressure differential less than 0.02Mpa.

6 - Filter element of air oil separator is made by the thin fiberglass, which imported from Germany HV company.

7 - Structure: The outer is metal nets, inside is high densite fiber glass and gas separation material, most inside is the metal nets, flange connection with sealing ring.

Packing Detail:

1 - Small carton boxes for each separator, then big thick carton boxes for several separators.

2 - Neutral packing or as customer require.

The consequences for air oil separator filter extended use:

1 - Separation efficiency is poor, resulting in increased fuel consumption, increased operating costs, lack of oil serious may even lead to host failure;

2 - Compressed air outlet oil content increases, affecting the back-end purification equipment, resulting in gas equipment can not work;

3 - After the blockage increases, leading to the actual unit discharge pressure increases, increasing energy consumption;

4 - Oil gas separation filter run time is too long, the glass fiber material may falling into the oil, resulting in shortened life of the oil filter.

Products service:

1) Pre-sale service:

Offer you the best price of the products you need 2) Medium-sales service: All filter element will be test before delivery .

3) After-sales service: Technical advisory for any time

If the products have the quality question, and because of our, we will return make the new products to you .

Company Introduction:

Over the years our company is committed to the production and sales of screw air compressor three filter components, is China's large-scale components manufacturers.

One of the air oil separator core, air filters, oil filter research and development, production and sales, not only to achieve the professional custom services (OEM), has been widely recognized by users at home and abroad.
