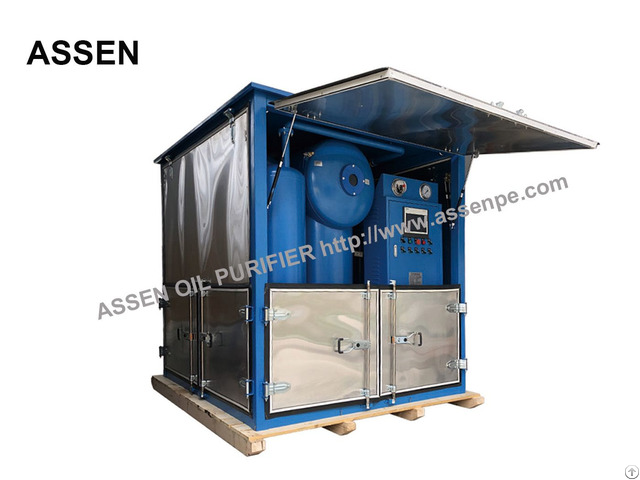

Offer 6000lph High Vacuum Transformer Oil Purification Dielectric Fluid Filtration Machine - China

ZYD Plant equips Italy SEIM Screw oil pump, this gather benefits such as very low noise level, very low pulsation into the pumped medium, eliminate the production of acetylene gas, very perfect performance and long life.

●With filter replacement indicator and filter saturation stop device

●It is equipped with leakage and overload stop devices to protect the motor.

●With phase sequence, phase loss protection function, sudden shutdown safety control system.

Application:

Oils inside transformers are mainly for insulating purpose- apart from which they also suppress corona and arcing, and also act as coolants inside the machines.

These oils must be maintained absolutely clean and dry in order to achieve and sustain the optimal insulating performance and dielectric strength.

Here rises the need for transformer oil purification process.

ASSEN ZYD Transformer Oil Purifier Machine is the key to transformer reliability, performance and longevity.

Your transformer's insulating oil should be free from moisture, dissolved gases and particles that accumulate as the oil ages.

Even some new oils may require treatment to limit these contents to acceptable levels.

Aftre treatment

Moisture PPM ≤3

Gas content % ≤0.01

Impurity size μ ≤1 (no free carbon)

Breakdown voltage kV ≥75

IFT dynes/cm ≥40

Acid value mgKOH/g ≤0.03

Dielectric loss factors tgδ(90°C) ≤0.001 We also have several plans for your choose;

1 - Optional P.L.C.

intelligent panel control, touch screen operation and dynamic display according to user needs.

2 - Optional Online PPM Meter, Optional flow meter with accumulator function.

3 - Optional frequency converter, you can adjust the flow according to your needs

4 - Optional external port design for transformer vacuum pumping

5 - The whole structure can be made into mobile, fixed, fully enclosed, concealed, canvas, open type.

6 - Optional three stage high vacuum system for higher vacuum degree work.

please contact us for more details.

Company Contact:

• Posted By: Chongqing Assen Power Equipment Co.,LTD

• Phone: 8615223801122

• Address: No.31-7 centre plaza,shapingba district, Chongqing , Chongqing , China

• Email:

• Website: https://www.assenpe.com

• Business Description: Chongqing Assen Power Equipment Co., Ltd which develops and implements of industrial equipment for reclamation, purification, drying and degassing of transformer, turbine, industrial and other oils, reclamation of all kinds of mineral oils with restoration of color and operational specifications.

  Oil reclamation involves new technologies in energy sector and industry in general.

  The equipment is in compliance with all relevant international standards.

  All products certified accordingly.

  Quality control complies with ISO 9001: 2001 and CE.

  Our Product: Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, transformer oil processing machine, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
