Automatic Stacker - China

Description

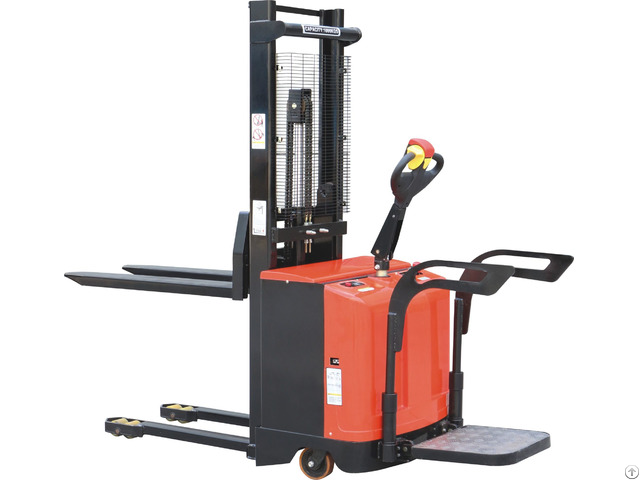

Product Description: Automatic Stacker is mainly used in pallet stacking and short distance transportation at plants, warehouse and logistics systems etc.

This machine is an electric forklift truck with steering bar drive and is perfect for storing and transporting loads on perfectly even surfaces.

Feature: Simple structure, easy to maintain and repair.

Long operation handle allows more light steering and ensures safe distance for driver.

Horizontal driving wheel, electromagnetic brake.

Curtis electric control, with safety protections.

German brand hydraulic motor, traction battery.

Safety features include a horn, an electromagnetic brake and belly reverse button.

Automatic battery charger, battery voltage indicator.

Integral strong chassis with alloy steel legs.

Model TB10

-16 TB10

-25 TB10

-30 TB10

-35 TB15

-25 TB15

-30 TB20

-16 Load capacity Kg 1000 1000 1000 1000 1500 1500 2000

Load center mm 500 500 500 500 500 500 500

Max.

lifting height mm 1600 2500 3000 3500 2500 3000 1600

Free lift mm 0 Wheel type Polyurethane solid tire Pedal length mm 500 500 500 500 500 500 500

Fork size(LxW) mm 1150*190 Width of forks(aptotic) mm 680 680 680 680 680 680 680

Overall length(The pedal is closed) mm 2040 2040 2040 2040 2040 2040 2040

Overall width mm 850 850 850 850 850 850 850

Overall height(mast closed) mm 2085 1805 2055 2305 1805 2055 2085

Overall height fork raised(with backrest) mm 2085 3036 3536 4036 3036 3536 2085

Outside turning radius mm 1725 1725 1725 1725 1725 1725 1725

Front wheel to fork tip mm 330 330 330 330 330 330 330

Aisle width for pallet 800×1200 lengthways 2480 2480 2480 2480 2480 2480 2480

Aisle width for pallet 1000×1000 crossways 2460 Lift speed, laden/unladen mm/s 70/108 Lowering speed, laden/unladen mm/s 78 Battery weight Kg 200 Max.

walking speeds Km/h 4.0/5.8 4.0/5.8 Grade abitity % 8 8 8 8 8 8 8

Total weight( with battery) Kg ~880 ~935 ~950 ~975 ~940 ~950 ~905

Driving wheel mm Φ215*75 Front wheel mm Φ80*70 Balance wheel mm Φ150*50 Battery V/Ah 24/210 Charger V/A 24/30 Driving motor Kw 1.5 1.5 1.5 1.5 1.5 1.5 1.5

Lifting motor Kw 2.0 2.0 2.0 2.0 2.0 2.0 2.0

Battery dimensions l/w/h mm 650*200*585
