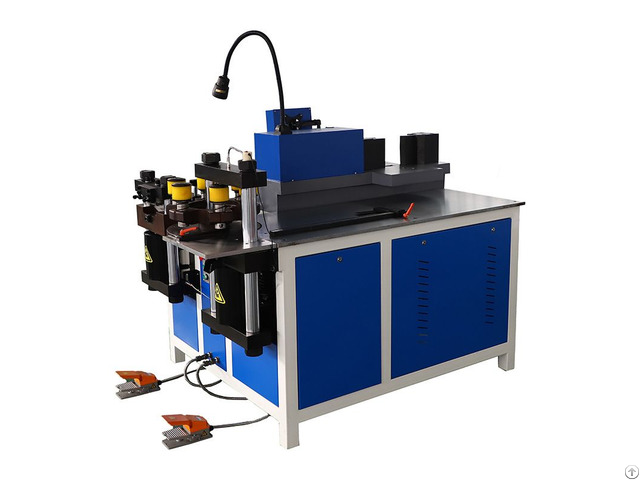

Bolt Brand Cnc Turret Type Hydraulic 3 In1 Busbar Processing Machine Ce Certified - China

integrates multi-functions, 4-servo material stops, 3-pump with 3-station configuration with automatic positioned punching, shearing and bending functions.

1 - All-in-One Work Units -Automatic punching, shearing, and bending units with quick-adjust features reduce processing time and boost efficiency by 30%+.

- Processes copper and aluminum busbars up to 16mm thickness with precision tooling.

- Modular design allows seamless switching between operations, minimizing workflow downtime.

2 - Precision Measurement System - Each workbench features calibrated measuring scales for accuracy within ±0.2mm.

- Dual-control options (foot pedal + manual buttons) enable flexible operation and emergency stops.

3 - Tooling Flexibility - Interchangeable dies support various busbar sizes (30×5mm to 120×12mm) and custom processing needs.

- Quick-release mechanisms for fast die changes, optimizing setup time.

Punching Unit Highlights - Turret-style Die System: 6-station automatic indexing reduces die change time to <3 seconds (5x faster than manual systems).

- High-Force Hydraulics: 80mm diameter cylinder with 50-ton punching capacity, ensuring clean holes in 16mm aluminum without burrs.

- Polyurethane Spring Ejection: Speeds up material release by 40%, preventing jams and improving workflow.

- Dual Control Modes: Foot pedal and button operation for intuitive, hands-free processing.

Bending Unit Highlights - Horizontal Workflow: Safe, ergonomic design with clear visibility for operator safety.

- Heat-Treated Dies: 45# steel quenched to HRC52-55 for over 100, 000 cycles of precision 90°-180° bending.

- Closed-Frame Structure: 60% stiffer than open frames, ensuring uniform pressure distribution and ≤0.5mm/m linearity error.

Shearing Unit Highlights - File-Shear Cutting: Cr12MoV alloy blades produce Ra≤1.6μm smooth edges with zero burrs or deformation.

- Zero-Waste Design: Optimized blade angle eliminates material loss, ideal for high-value conductors.

- Elastic Buffer System: Polyurethane cushion extends blade life by 3x while reducing vibration.
