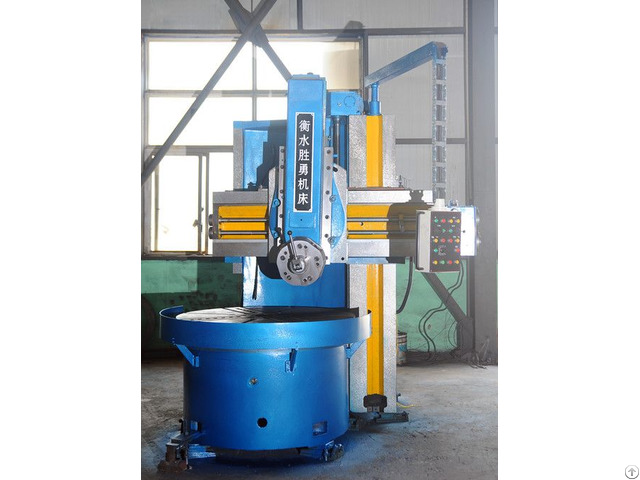

Cnc Vertical Lathe Equipment Ck5123 - China
price: 70000.00 Dollar US$
Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: Vertical lathe, Vertical turning Lathe, Vertical turret lathe, CNC lathe, Lathe machine, Heavy duty lathes, Plano miller, Milling machine and boring machine etc.
Single column Vertical Lathe machine model:
C5112/C5116/C5118/C512 0/C5123/C5125/C5126
Maximum turning diameter: 1250/1600/1800/2000/2300/ 2500mm
Maximum height of workpiece: 1000/1000/1000/1200/1300/ 1350 mm
Maximum weight of workpiece 3.2 / 5 / 5 / 6 / 8 / 10 t
Double column Vertical Lathe machine model:
C5225/C5232/C5240/C525 0/C5263
Maximum turning diameter: 2500/3150/4000/5 000/6300mm
Table diameter : 2500/3150/4000/5000/6300 mm
Our factory video:
https: //youtu.
be/4xCWym-Fp9k
Technical specification of 2 meter table CNC vertical lathe equipment CK5123
1 Table diameter 2000mm
2 Maximum turning diameter 2300mm
3 Maximum height of workpiece 1300mm
4 Maximum weight of workpiece 8 t
5 Speed change of table 2.5-80 r/min
6 Working table Step of rotation speed 16
7 Feed rates 0-1000 mm/min
8 Step stepless
9 Horizontal travel of tool post 1250mm
Vertical travel of tool post 915mm
10 Horizontal travel of side cutter bar 650mm
Vertical travel of side cutter bar 1000mm
11 Crossrail travel 750mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Machine weight 19.5 t
16 Overall dimensions(L×W×H) 3300×3280×4000 mm
Company Contact:
- Phone: 0086-18330891102
- Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County,, Hengshui City, Hebei Province, China
- Email:
Published date: November 23, 2016
- Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: CNC lathe , Vertical lathe , vertical turning lathe, vertical turret lathe, Heavy duty horizontal lathe machine, Gantry milling machine, plano miller, boring milling machine and roll turning lathe etc.
If interested, feel free to contact us
