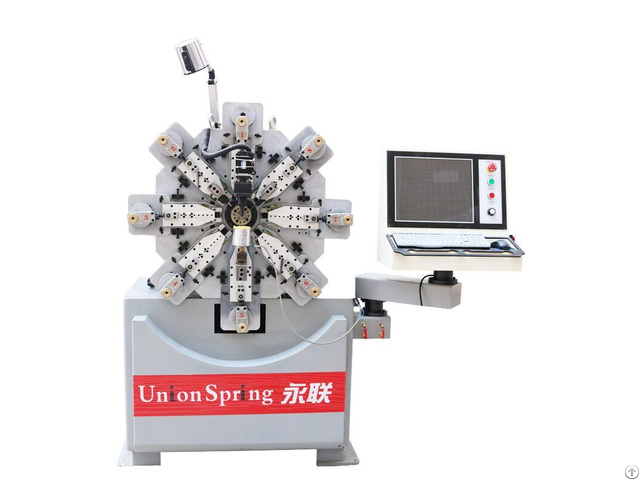

Coil Spring Making Machine - China

Machine description:

1 - using the unique camless and rockless arm design, the adjustment of the technical requirements are reduced, the adjustment time is greatly reduced, the adjustment speed is more than 50% faster than the traditional CAM machine, the production speed is fast, accurate positioning, stable operation, strong expansibility;

2 - Japanese Sanyo motor, imported precision bearing parts, and imported guide rail to improve the motion accuracy, ensure stable operation, durability and effectively extend the service life of the machine;

3 - Intelligent professional-level industrial computer operating system, multi-language display, easy to learn and operate operation interface, powerful functions to meet the requirements of complex multi-tasks.

4 - operating system protection device, wire feeding frame broken alarm, safety door protection mechanism, to provide comprehensive protection for the operator and the machine;

Specification：

Model US-236R US-480R

Axis 12 12

Wire Diameter 0.3-2.5mm 1.5-5.0mm

Wire Wheel Sets 2 Sets 3 Sets

Slide Axis 0.75KW*8 2.0KW*8

Wire Feeding Axis 2.7KW 4.4KW

Rotary Wire Axis 2.0KW 2.7KW

Rotary Quill Axis 0.75KW 2.0KW

Spinner Axis 0.4KW 1.2KW

Machine Size 1550*1500*1800mm3 2200*1930*1950mm3

Machine Weight 1500KG 3000KG

Company Contact:

• Posted By: Union Spring

• Phone: +86713823275918

• Address: Building No.19, Second Industrial D, Shenzhen , GuangDong , China

• Email:

• Website: https://www.springmachine.top/

• Business Description: UNION SPRING is a high-tech enterprise specializing in R&D, design, manufacture and sales of CNC spring machine, has nearly 20 years spring machine manufacturing experience.

  Mainly engaged in 2D/3D wire bending machine, camless spring machine, wire rotary spring machine, spring forming machine, high speed coiling machine, screw machine, wire decoiler, tempering furnace etc., is widely used in compression spring, tension springs, torsion springs and wire forming products, can meet the production needs of many industries, including automobiles, kitchen utensils, sanitary ware, carts, supermarket shelves, sports equipment, crafts, lighting, electronics, toys, home appliances and other industries.
