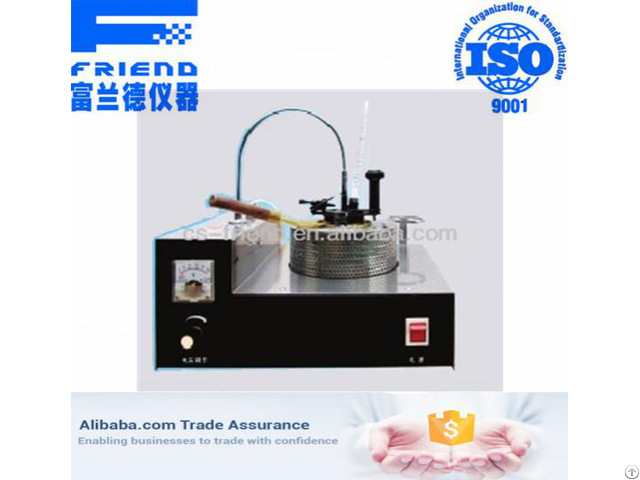

Fdt 0201 Closed Cup Flash Point Tester - China

Scope

The instrument is in accordance with the People's Republic of China National Standard GB / T 261 - the design and manufacturing requirements, "Flash Point by Pensky Martens closed cup method" under

Features

1, the instrument is designed in full compliance with GB / T261 standards.

2 heating power continuous stepless power level by the voltage meter visual display, advanced and reasonable temperature control.

3, the structure is compact, stainless steel countertops and beautiful, easy to remove oil.

4, easy to operate, accurate test results, a number of measurement detection unit selected as the flash point of instrumentation.

Technical Parameters

1 Power supply: AC 220V ± 10%, 50Hz.

2, the heating device: heating power from 0 ~ 600W continuously adjustable.

3, the sample heating rate: 1 ~ 12 ℃ / min, controlled adjustable.

4, the electric mixing device: ⑴ 90 ~ 120 r / min for the test step A.

⑵ 250 ± 10 rev / min, applicable test procedure B.

6 - Standard oil cup: ⑴ diameter: 50.7 ~ 50.8 mm.

⑵ Depth: 55.7 ~ 56.0 mm.

⑶ test oil capacity groove depth: 33.9 ~ 34.3 mm.

⑷ test oil capacity: about 70 ml.

7, ignition means: ⑴ ignition sources: gas (or other civilian combustible gas, the same below).

⑵ pilot aperture: 0.8 mm.

8, a thermometer: a bar mercury thermometer, in line with GB / T 261-2008 standards.

⑴ temperature range -5 ~ 110 ℃, indexing 0.5 ℃.

⑵ temperature range of 20 ~ 150 ℃, indexing 1.0 ℃.

⑶ temperature range of 90 ~ 370 ℃, dividing 2 ℃.

9, the ambient temperature: ≤35 ℃.

10, relative humidity: ≤85%.

11 - Total power consumption: less than 650W.

Company Contact:

• Posted By: Changsha Friend Experimental Analysis Instrument Co., Ltd

• Phone: 18874136820

• Address: 3F/8, No. 627 Lugu Road , LongSea Group, Changsha High-tech Zone, changsha , hunan , China

• Email:

• Business Description: Changsha Friend Experimental Analysis Instrument Co., Ltd is a leading brand of petroleum product analysis apparatus field at china.

  As a professional manufacturers of petroleum testing equipment, we are an active member in standards organizations and lead standard development to guarantee that the methods meet customer requirements of precision and ease of use.

  which is why friend Instrument Company is a leading producer and supplier of petroleum and petrochemical instrumentation in china.

  Our Products:

  - fdt 0131 automatic open cup flash point tester

  - fdt 0132 automatic cleveland open cup flash point tester

  - fdt 0101 open cup flash and fire point tester

  - fdt 0232 automatic closed cup flash point tester

  - fdt 0231 automatic closed cup flash point tester
