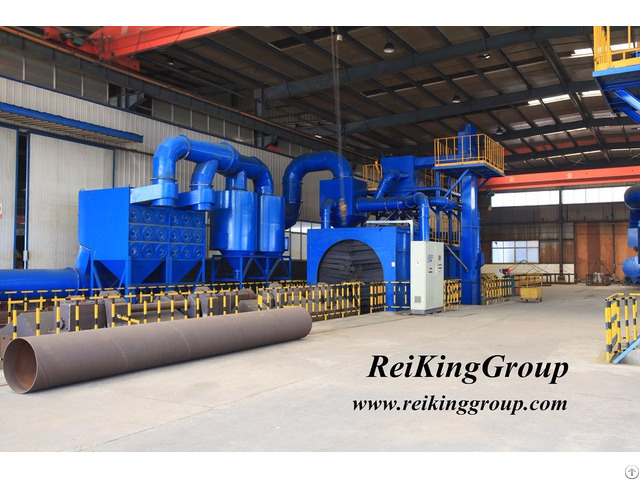

Metal Pipe Rust Removal Machine - China

This kind of machine is mainly used for the rust removing or surface cleaning and intensifying of various diameters steel pipe, round steel, wind turbine tower, tank, rod steel and wires.

It’s a new special shot blasting equipment specific designed and manufactured by user requirements.

This series of equipment has a variety of body structure, and has been characterized by high cleaning efficiency and low energy consumption.

By shot blasting process, not only can remove rust, oxide skin, and various residue on workpiece surface, beauty surface and increase the surface friction and grip force, make preparation for surface non-destructive testing and anti-corrosion coating paint, but also the tensile and compressive strength of the workpiece can be enhanced, achieving the goal of workpiece protection, corrosion prevention and life increase of the workpiece.

Its superior cleaning performance has made past labor-intensive methods of blasting and wire brush become obsolete.

Compared to other surface treatment technology, it does not includes chemical reaction process and will not pollute the environment.

The dust removing system adopts the internationally advanced pulse type device, characterized by high efficient, and after cleaning the dust emission meets the relevant requirement of the world regarding environmental protection.

Technical Parameters:

Item Unit DQW10 DQW15 DQW20 DQW25 DQW30 DQW140

Workpiece Size mm Φ30-100 Φ50-150 Φ50-200 Φ50-250 Φ50-300 Φ152-1400

Shot Blast Volume kg/min 2*250 2*250 2*250 2*250 2*1000 2*1000

Lifting Volume kg/min 30000 30000 30000 30000 30000 1200000

Separating Volume kg/min 30000 30000 30000 30000 30000 1200000

Ventilation Volume m³/h 5000 5000 5000 6000 6000 10000

Power kw 50 50 50 50 50 115
