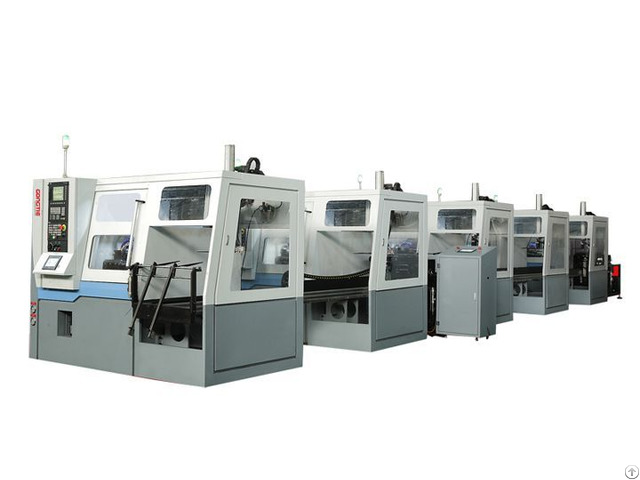

New Cnc Lathe Machine - China

new cnc lathe machine

Small horizontal metal lathe machine

high duty cone pulley precision lathe

Q series-precise linear guide-way with flat bed in blade row : Q5, Q7, Q5C, Q7C

S series-precise linear guide-way with flat bed in blade row : S36, S350

with the features of high precision.

high speed.

high efficiency, is the ideal selection for substituting hard rail lathes and imported lathes.

* High precision: importing components from Japan and Taiwan through the advanced assembly and inspection technology, realizing the precise turning with tolerance of μ level.

* High speed: more than 5000RPM for spindle, rapid traverse 20m/s, to reach the high speed machining.

*High-efficiency: with the concept of technique innovation and application oriented, and sustainability improve the overall performance, to make the processing more efficiency.

* Stability: high quality requirement and strict selecting for all the components, to make the machine performance more stable.

(Synchronous electric spindle)- the best selection for substituting the imported lathes.

* More precision: the complete Synchronous servo configuration for the spindle and the X/Z axis, makes the processing accuracy get a new break through.

* Higher speed: the superior Synchronous electric spindle make the spindle perform higher, faster, and more stable.

* More efficiency: the complete, Synchronous control for the core parts (all the axis), makes the processing efficiency better.

Main parameters UNIT Q5 Q7 Q7C S36 S36C S350 S36D S350D

Capability Max.

swing diameter mm 245 285 285 300 300 350 300 350 Max.

turning diameter mm 240 270 270 270 270 350 270 350 Max.

turning length mm 200 300 300 330 330 420 330 420 Max.

bar through-hole mm 21(25) 26(35) 26(35) 26(35) 26(35) 40 26(35) 40

Axis Stroke X-axis travel mm 250 320 320 420 420 420 330 330 Z-axis travel mm 200 300 300 330 330 330 420 420

Rapid Traverse X/Z-axis m/min 20 20 20 20 20 20 20 20

Spindle Spindle nose size N/A A2-4 A2-5 A2-4 A2-5 A2-5 A2-5 A2-5 A2-5 Spindle servo motor power kW 2.2/3.7 3.7/5.5 synchronous

electric spindle 3.7/5.5 3.7/5.5 3.7/5.5synchronous electric spindle 5.5/7.5 3.7/5.5 5.5/7.5 Spindle speed range rpm 0～5500 0～5000 0～6000 0～5000 0～5000 0～4500 0～5000 0～4500 Work piece clamping method N/A 25 collet

4' hydraulic

chuck 36 collet

chuck

42 collet 36 collet

(5'hydraulic chuck) 6' hydraulic

chuck(42 collet)

No.

of tools Number of tools PCS 5 5 7 5 5 5 3+8 3+8

Toolholder Toolholder type N/A Dovetail row of knives Dovetail row of knives Dovetail row of knives; blade row+spindle head T-slot blade row+spindle head T-slot blade row+spindle head T-slot blade row+spindle head T-slot blade row+63turret+s pindle head T-slot blade row+63turret+spi ndle head Toolholder center height in radial mm 50 50 50 62 62 62 62 62 Tool size mm 16*16 16*16 16*16 20*20 20*20 20*20(25*25) 20*20 20*20(25*25) Boring rod diameter mm 25 25 25 25 25 25 25 25

Accuracy X\Z axis repeating postioning accuracy mm 0.002 0.002 0.002 0.002 0.002 0.002 0.002 0.002

Others Cooling motor capacity L 120 120 120 120 120 120 120 120 hydraulic box capacity L 60 60 60 60 60 60 60 60 Required electric power kVA 7 8 8 12 12 14 15 15 Height from floor to spindle center mm ≈1050 ≈1070 ≈1070 ≈1070 ≈1070 ≈1070 ≈1000 ≈1000 Overall size(L*W*H) mm 1500*1250*1650 1650*1300*1650 1650*1300*1650 1850*1750*1750 1850*1750*1750 1850*1750*1750 1850*1750*1750 1850*1750*1750 Net weight kg ≈1200 ≈1700 ≈1700 ≈2400 ≈2400 ≈2400 ≈2600 ≈2600

Standard configuration: Tool box, instruction book, operational manual, cooling system, lighting system, lubrication system, chips cleaner, hydraulic collet(chuck), foot switch

Optional configuration: program control blowing function, precision C axis dividing, power spindle head, automatic door, loading and unloading system, industrial robotic, automatic bar feeder, receiving device for bar materials, automatic detection system, automatic cutter radius compensation system, high-pressure cooling system
