Photovoltaic Energy Storage Cabinet - China

price: contact company for price

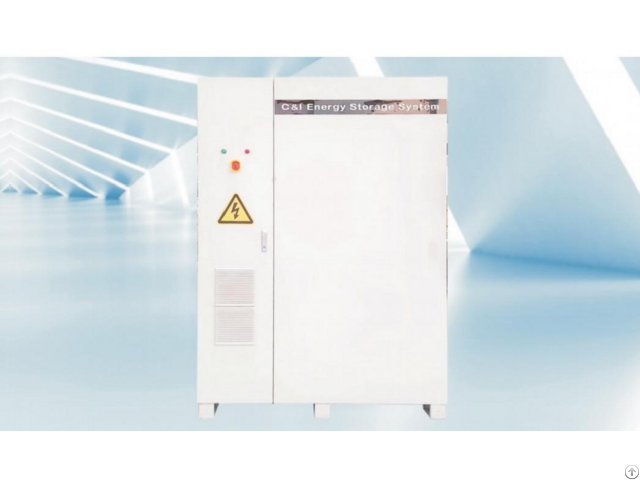

Photovoltaic Energy Storage Cabinet

Products Photos Catalog Photovoltaic Energy Photos Catalog

Model KGT30/70-ICA KGT30/90-ICA KGT30/120-ICA Product specification 30kW/70kWh 30kW/90kWh 30kW/120kWh

DC side parameter Cell specification Ruipu100Ah Ruipu100Ah Ruipu100Ah

Battery type FP LFP LFP

Battery modules are grouped 2P16S 2P16S 2P16S

Battery module power 10.24kWh 10.24kWh 10.24kWh

Number of modules 9 12

Cluster capacity 71.68kWh 92.16kWh 122.88kWh

Battery system voltage range 313.6-403.2Vdc 403.2-518.4Vdc 537.6-691.2Vdc

Charge and discharge ratio 0.5C 0.5C 0.5C

AC side parameter

Rated power 30kW 30kW 30kW

Rated voltage AC380V AC380V AC380V

Rated frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz

Maximum charge and discharge power 30kW 30kW 30kW

Isolation transformer selectable selectable selectable

System parameter

Cooling mode Air conditioning refrigeration Noise port <68dB(1m mark) Class of protection IP54 Altitude requirement 3000m(>2000m derate) Ambient temperature depth Output overload port Over duty, 10min;over count, 1min Communication protocol ModbusRTU/ModbusTCP Fire protection type heptafluoropropane System cycle life ≥6000times Size (L * W * H) 1440*1100*2100mm 1440*1100*2100mm 1440*1100*2100mm

Total system mass 1800kg 1800kg 1800kg


Company Contact:


  • Phone: 18175753613

  • Address: changchong industrial park, Chenzhou , Hunan province, China

  • Email: Email

Published date: November 7, 2024

  • Business Description: manufacturer of substation,distribution box and other electrical equipments in China

    Hunan Xinneng Industrial Co.,Ltd.is a national high-tech enterprise and a provincial-level "specialized,refined,and innovative"small giant enterprise;We are one of the professional manufacturer of high and low voltage switch transmission

    and distribution equipment,as well as low-voltage electrical components.

    Our company's products include box type substations, inflatable cabinets,American style box transformers,cable branch boxes,outdoor switching

    stations,photov oltaic equipment,electrical components,and intelligent operation and

    maintenance energy management systems.

    Our quality is stable,the price is reasonable,and we are highly praised by customers!
